{Article number 900.36.01760 DC}
HEWI mounting plate with cover of mobile support rail rails and backrests(2 pcs.), System 900
to accommodate the 900.36 mobile support rails ... and the 900.51.91 mobile backrests., mounting plate made of stainless steel, Stainless steel cover, powder coated, Cover diameter 70 mm, depth 12 mm.
Show more
to accommodate the 900.36 mobile support rails ... and the 900.51.91 mobile backrests., mounting plate made of stainless steel, Stainless steel cover, powder coated, Cover diameter 70 mm, depth 12 mm.
Current color: DC (matt black)
EAN
4014885674382
Colour
Material
Powder-coated
Mounting plate with cover of mobile handholds and backrests(2 pcs.), System 900

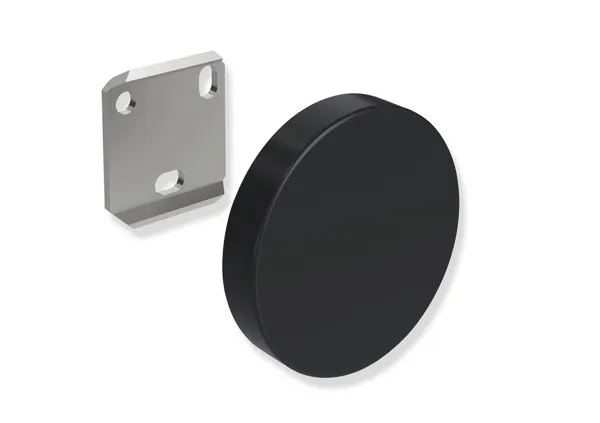

- rectangular mounting plate with matching, round cover
- is used to hold the 900.36 mobile support rails ... and the 900.51.91 mobile backrests.
- Cover diameter 70 mm, depth 12 mm
- Cover made of high quality stainless steel, powder-coated in HEWI colours DX (white deep matt), DC (matt black) and SC (matt dark grey pearl mica)
- Mounting plate made of stainless steel
- for mounting with non-corrosive and tested HEWI fixing material for different wall systems (to be ordered separately).
- rectangular mounting plate with matching, round cover
- is used to hold the 900.36 mobile support rails ... and the 900.51.91 mobile backrests.
- Cover diameter 70 mm, depth 12 mm
- Cover made of high quality stainless steel, powder-coated in HEWI colours DX (white deep matt), DC (matt black) and SC (matt dark grey pearl mica)
- Mounting plate made of stainless steel
- for mounting with non-corrosive and tested HEWI fixing material for different wall systems (to be ordered separately).
Downloads
| 2D drawing | DXF | |
| Product data sheet | ||
| Installation instructions | ||
| Cleaning and Care Instructions |
