Article number 900.50.001XA}

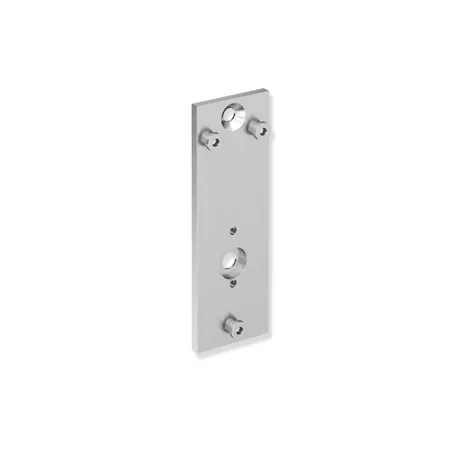

HEWI Mounting plate for mobile hinged support rails, System 900
rectangular mounting plate w/fix. screw, used to hold and fix mobile hinged support rails 900.50.4...XA, 70 mm wide, 210 mm high, 18 mm deep, stainless steel, satin, for install. w/non-corrosive, tested HEWI fixing materials for different wall systems (to be ordered separately).
Show more
rectangular mounting plate w/fix. screw, used to hold and fix mobile hinged support rails 900.50.4...XA, 70 mm wide, 210 mm high, 18 mm deep, stainless steel, satin, for install. w/non-corrosive, tested HEWI fixing materials for different wall systems (to be ordered separately).
EAN
4014885534860
Version
suitable for both sides
Wall plate
Design A
Material
Stainless steel
Mounting plate for mobile hinged support rails, System 900
- rectangular mounting plate with fixing screw
- used to hold and fix the mobile hinged support rails 900.50.4...XA
- 70 mm wide, 210 mm high, 18 mm deep
- made of stainless steel, satin
- for mounting with non-corrosive and tested HEWI fixing materials for different wall systems (to be ordered separately)
- sealing tape for sealing the fixing points is included in the scope of supply
- rectangular mounting plate with fixing screw
- used to hold and fix the mobile hinged support rails 900.50.4...XA
- 70 mm wide, 210 mm high, 18 mm deep
- made of stainless steel, satin
- for mounting with non-corrosive and tested HEWI fixing materials for different wall systems (to be ordered separately)
- sealing tape for sealing the fixing points is included in the scope of supply
Design awards
Awarded by
Downloads
Documents
| BIM | Link | |
| Colour Chart | Link |
Mounting plate
{
Article number 900.50.001XA}
