{with hygiene cutout, seat 450 x 450, satin finished
Article number 900.51.404XA 92}

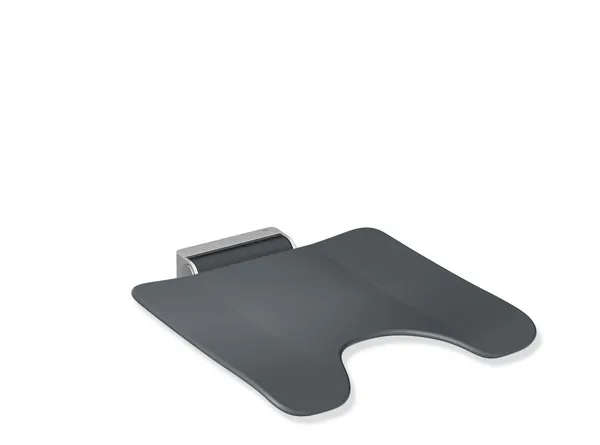

Mobile HEWI hinged seat, System 900
construction consisting of wall bracket and continuous seat, slip-resistant, textured seat made of synthetic material in HEWI colours 98 (signal white) and 92 (anthracite grey), reinforcement of the seat made of aluminium, powder coated in the colour of the seat, wall bracket made of stainless steel, chrome, satin, seat depth when folded up 77 mm, weight capacity up to 150 kg, for mobile use, for easy and flexible retrofitting on existing, preassembled mounting plate: 900.51.001XA (must be ordered separately), tool-free and quick installation, 450 mm wide, 528 mm deep, 112 mm high, seat 450 mm wide and 450 mm deep, for mounting with non-corrosive HEWI fixing material (to be ordered separately)
Fulfils the DIN 18040 requirements, ÖNORM B1600/1601 and SIA 500.
Show more
construction consisting of wall bracket and continuous seat, slip-resistant, textured seat made of synthetic material in HEWI colours 98 (signal white) and 92 (anthracite grey), reinforcement of the seat made of aluminium, powder coated in the colour of the seat, wall bracket made of stainless steel, chrome, satin, seat depth when folded up 77 mm, weight capacity up to 150 kg, for mobile use, for easy and flexible retrofitting on existing, preassembled mounting plate: 900.51.001XA (must be ordered separately), tool-free and quick installation, 450 mm wide, 528 mm deep, 112 mm high, seat 450 mm wide and 450 mm deep, for mounting with non-corrosive HEWI fixing material (to be ordered separately)
Fulfils the DIN 18040 requirements, ÖNORM B1600/1601 and SIA 500.
Current color: 92 (anthracite grey)
EAN
4014885537861
Colour
Assembly
mobile
Material Seat/ Backrest
Synthetic material
Material
Stainless steel
Mobile hinged seat, System 900
- construction consisting of wall bracket and continuous seat
- slip-resistant, textured seat made of synthetic material in HEWI colours 98 (signal white) and 92 (anthracite grey)
- reinforcement of the seat made of aluminium, powder coated in the colour of the seat
- wall bracket made of stainless steel, satin
- seat with hygiene cutout can be folded up to save space
- seat depth when folded up 77 mm
- weight capacity up to 150 kg
- for mobile use
- for easy and flexible retrofitting on existing, preassembled mounting plate 900.51.001 (must be ordered separately)
- tool-free and quick installation by means of simple hanging of the seat
- secured by fixing screw
- 450 mm wide, 528 mm deep and 112 mm high
- seat 450 mm wide and 450 mm deep
- for mounting with non-corrosive and tested HEWI fixing materials for different wall systems (to be ordered separately)
- sealing tape and sealing discs for sealing the fixing points according to DIN 18534 are included in the scope of delivery
- fulfils the DIN 18040, ÖNORM B1600/1601 and SIA 500 requirements
- construction consisting of wall bracket and continuous seat
- slip-resistant, textured seat made of synthetic material in HEWI colours 98 (signal white) and 92 (anthracite grey)
- reinforcement of the seat made of aluminium, powder coated in the colour of the seat
- wall bracket made of stainless steel, satin
- seat with hygiene cutout can be folded up to save space
- seat depth when folded up 77 mm
- weight capacity up to 150 kg
- for mobile use
- for easy and flexible retrofitting on existing, preassembled mounting plate 900.51.001 (must be ordered separately)
- tool-free and quick installation by means of simple hanging of the seat
- secured by fixing screw
- 450 mm wide, 528 mm deep and 112 mm high
- seat 450 mm wide and 450 mm deep
- for mounting with non-corrosive and tested HEWI fixing materials for different wall systems (to be ordered separately)
- sealing tape and sealing discs for sealing the fixing points according to DIN 18534 are included in the scope of delivery
- fulfils the DIN 18040, ÖNORM B1600/1601 and SIA 500 requirements
