{Article number 900.51.91460 CV}

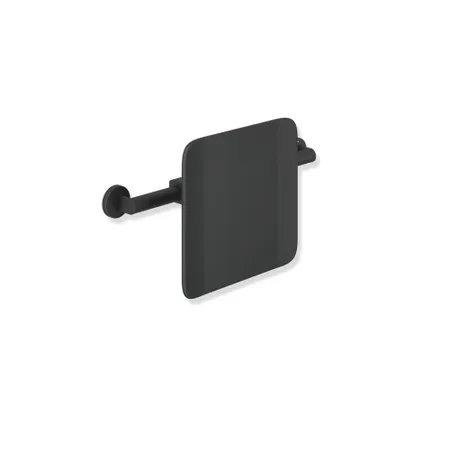

HEWI mobile back support
Stainless steel connection, powder coated, Plastic backrest, Centre-to-centre distance from 478 to 578 mm, adjustable on site, 150 mm deep, For wall mounting, easy mounting due to individually mountable stainless steel fixing plates for hanging the rail, is secured with fastening screw (theft protection), meets the requirements of BS standard BS 8300:2009 (+A1:2010)/Doc M.
Show more
Stainless steel connection, powder coated, Plastic backrest, Centre-to-centre distance from 478 to 578 mm, adjustable on site, 150 mm deep, For wall mounting, easy mounting due to individually mountable stainless steel fixing plates for hanging the rail, is secured with fastening screw (theft protection), meets the requirements of BS standard BS 8300:2009 (+A1:2010)/Doc M.
EAN
4014885673866
Befestigungsabstand
478 - 578 mm
Colour
Variant
without hinged support rails
Material Seat/ Backrest
Synthetic material
Material
Powder-coated
Mobile back support, System 900
- backrest with fixing rails with roses on both sides
- serves as back support for toilet users
- for wall mounting
- for mobile use
- 330 mm high and 150 mm deep, backrest 350 mm wide, rail diameter 32 mm, tube thickness 2 mm
- Centre-to-centre distance from 478 to 578 mm, adjustable on site
- easy wall mounting due to individually mountable stainless steel fastening plate for hanging the rail
- is secured with fastening screw (theft protection)
- Wall connector made of high-quality stainless steel, powder-coated in HEWI colour CV (deep matt black) and ER (deep matt dark grey pearl mica) with black backrest or powder-coated in HEWI colour AS (deep matt white) with white backrest
- including non-corrosive and tested HEWI fixing material
- meets the requirements of BS standard BS 8300:2009 (+A1:2010)/Doc M
- backrest with fixing rails with roses on both sides
- serves as back support for toilet users
- for wall mounting
- for mobile use
- 330 mm high and 150 mm deep, backrest 350 mm wide, rail diameter 32 mm, tube thickness 2 mm
- Centre-to-centre distance from 478 to 578 mm, adjustable on site
- easy wall mounting due to individually mountable stainless steel fastening plate for hanging the rail
- is secured with fastening screw (theft protection)
- Wall connector made of high-quality stainless steel, powder-coated in HEWI colour CV (deep matt black) and ER (deep matt dark grey pearl mica) with black backrest or powder-coated in HEWI colour AS (deep matt white) with white backrest
- including non-corrosive and tested HEWI fixing material
- meets the requirements of BS standard BS 8300:2009 (+A1:2010)/Doc M
