Article number 950.50.12191 92}

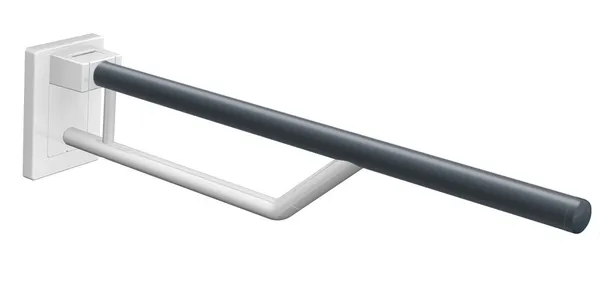

HEWI Mobile hinged support rail Duo System 800 K
with two gripping levels arranged on top of each other, bottom rail is merged with the top rail at an angle of 135°, upper rail (diameter 33 mm), bottom rail (diameter 25 mm) starts at a distance of 250 mm from the front edge of the top rail, projection 700 mm, bracket 181 mm high and 130 mm wide, can be folded upwards and, folded downwards with braking mechanism, hinged support rail made of high-quality polyamide in the HEWI colour 98 (signal white), upper rail made of high-quality polyamide according to HEWI colour chart, with continuous, with continuous, anti-corrosion steel core and bracket made of steel with cover made of high-quality polyamide, produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices, fulfils the ÖNORM B1600/1601 and SIA 500 requirements. weight capacity 100 kg.
Show more
with two gripping levels arranged on top of each other, bottom rail is merged with the top rail at an angle of 135°, upper rail (diameter 33 mm), bottom rail (diameter 25 mm) starts at a distance of 250 mm from the front edge of the top rail, projection 700 mm, bracket 181 mm high and 130 mm wide, can be folded upwards and, folded downwards with braking mechanism, hinged support rail made of high-quality polyamide in the HEWI colour 98 (signal white), upper rail made of high-quality polyamide according to HEWI colour chart, with continuous, with continuous, anti-corrosion steel core and bracket made of steel with cover made of high-quality polyamide, produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices, fulfils the ÖNORM B1600/1601 and SIA 500 requirements. weight capacity 100 kg.
Current color: 92 (anthracite grey)
EAN
4014885418559
Function
hinged
Version
suitable for both sides
Size
700 mm
Colour
Variant
without additional function
Assembly
mobile
Material
Polyamide
Insert
Steel core
Supplied only with wall-specific HEWI fixing material (Stainless steel).
Mobile hinged support rail Duo System 800 K
- for easy and flexible retrofitting on existing, preassembled mounting plate: 950.50.014XA, must be ordered separately
- for mobile use
- with two gripping levels arranged on top of each other
- upper rail is merged with the top rail at an angle of 135°
- upper rail (diameter 33 mm) for holding on to and providing support
- bottom rail (diameter 25 mm) starts at a distance of 250 mm from the front edge of the upper rail and is used for holding on to and for turning in from the side
- 700 mm projection, bracket 181 mm high and 130 mm wide
- can be folded upwards and, folded downwards with braking mechanism
- hinged support rail made of high-quality polyamide in the HEWI colour 98 (signal white)
- upper rail made of high-quality polyamide according to HEWI colour chart
- with continuous, anti-corrosion steel core and bracket made of steel with cover made of high-quality polyamide
- tool-free and quick installation by means of short, simple hanging
- secured against unintentional removal
- unlocking for flexible use by spring actuation
- with toilet roll holder 950.50.01090, toilet roll holder with WC flushing mechanism 950.50.07090 (right), 950.50.07190 (left) and floor supports 950.50.020XA, 950.50.025XA and 950.50.026XA for retrofitting
- produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices
- fulfils the ÖNORM B1600/1601 and SIA 500 requirements
- weight capacity 100 kg
- for easy and flexible retrofitting on existing, preassembled mounting plate: 950.50.014XA, must be ordered separately
- for mobile use
- with two gripping levels arranged on top of each other
- upper rail is merged with the top rail at an angle of 135°
- upper rail (diameter 33 mm) for holding on to and providing support
- bottom rail (diameter 25 mm) starts at a distance of 250 mm from the front edge of the upper rail and is used for holding on to and for turning in from the side
- 700 mm projection, bracket 181 mm high and 130 mm wide
- can be folded upwards and, folded downwards with braking mechanism
- hinged support rail made of high-quality polyamide in the HEWI colour 98 (signal white)
- upper rail made of high-quality polyamide according to HEWI colour chart
- with continuous, anti-corrosion steel core and bracket made of steel with cover made of high-quality polyamide
- tool-free and quick installation by means of short, simple hanging
- secured against unintentional removal
- unlocking for flexible use by spring actuation
- with toilet roll holder 950.50.01090, toilet roll holder with WC flushing mechanism 950.50.07090 (right), 950.50.07190 (left) and floor supports 950.50.020XA, 950.50.025XA and 950.50.026XA for retrofitting
- produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices
- fulfils the ÖNORM B1600/1601 and SIA 500 requirements
- weight capacity 100 kg
Downloads
Documents
| Colour Chart | Link |
Mobile hinged support rail Duo
{
