Numer artykułu 111XAH53.018
HEWI Fixed knob
in H-technology, made of stainless steel, Surface satin finished, Knob model 108X made of stainless steel (1.4301).approach diameter 21.3 mm, Grip diameter 50 mm, 89 mm length, 84 mm total height, preassembled on backplate 230.21XAHLN, with spindle 8, 8.5, 9 or reduced 10 to 8 mm.
Recommendation! When ordering please clarify dimensions and/or features and options
Pokaż więcej
in H-technology, made of stainless steel, Surface satin finished, Knob model 108X made of stainless steel (1.4301).approach diameter 21.3 mm, Grip diameter 50 mm, 89 mm length, 84 mm total height, preassembled on backplate 230.21XAHLN, with spindle 8, 8.5, 9 or reduced 10 to 8 mm.
Recommendation! When ordering please clarify dimensions and/or features and options
holding-up spring
NIE - bez sprężyny
DIN Kierunek
Lewa/Prawa
EAN
4014885219798
Zrównoważony rozwój
EPD
Artikelnummer
111XAH53.018
Kwadrat
8 mm
Technologia
Technologia H
Grubość drzwi Maks.
38,1 - 48,0 mm
Szyldy/rozety
Szyld krótki
Materiał
Stal
Rodzaj zestawu
Półzestawy - gałki

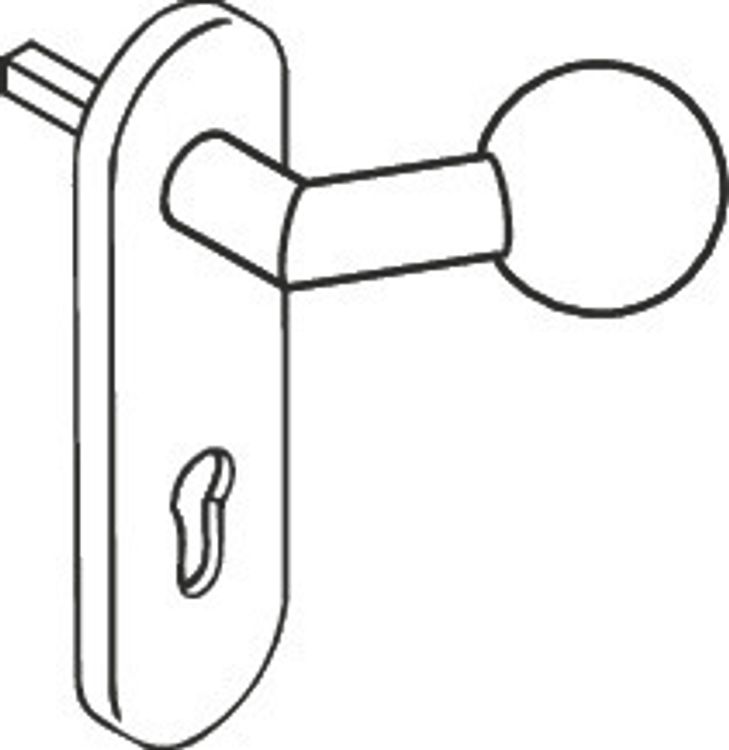

Fixed knob on backplate in H-technology

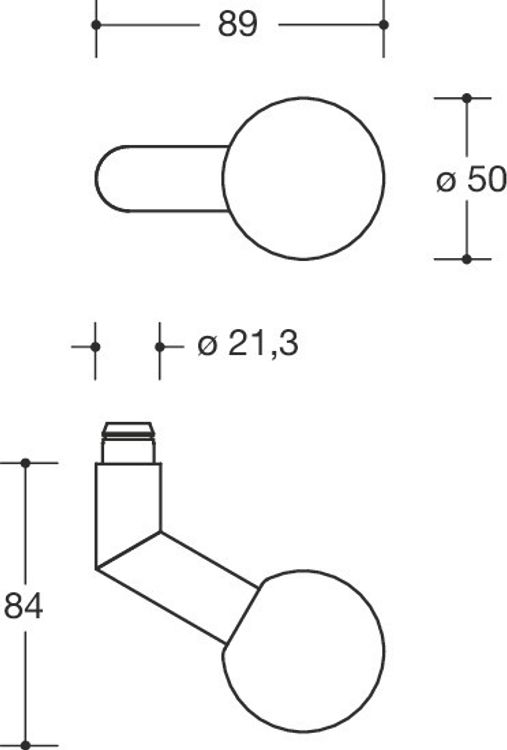

Knob Design 108X made of stainless steel (1.4301) Base/join diameter 21.3 mm, handle diameter 50 mm, total length 89 mm, total height 84 mm, fixed, preassembled on short backplate 230.21XAHLN, with square spindle 8, 8.5, 9 or 10/8 mm stepped.
Surface satin finished
Sustainability: EPD Environmental Product Declaration
Knob Design 108X made of stainless steel (1.4301) Base/join diameter 21.3 mm, handle diameter 50 mm, total length 89 mm, total height 84 mm, fixed, preassembled on short backplate 230.21XAHLN, with square spindle 8, 8.5, 9 or 10/8 mm stepped.
Surface satin finished
Sustainability: EPD Environmental Product Declaration
Nagrody za wzornictwo
Przyznane przez
Gałka z trzpieniem, element nieruchomy
Numer artykułu 111XAH53.018
