Klamka okienna

na zapytanie możliwe również ze skokiem co 45° dla funkcji uchylnej

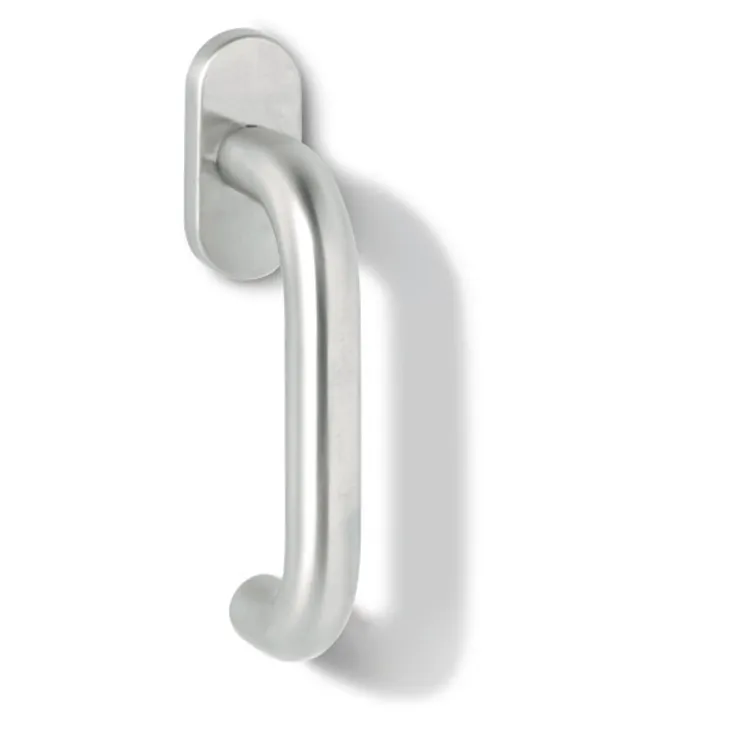

Window handle
Design 111X made of stainless steel, diameter 21.3 mm, 140 mm long, with 1.5 mm wall thickness, with 90 degree latching points and 7 mm square spindle, length protrudes by 30 mm (other lengths and 45 degree latching on request). The window handle fulfils the requirements of DIN 18040. Preassembled on a rose 72 x 31.5 mm, with pivot diameter 10 mm, concealed screw fixing, screw hole spacing 43 mm, cover cap made of stainless steel (1.4301), wall thickness 1.5 mm. Supplied without fixing screws. Surface of the window handle and the rose with satin finish.
