Numer artykułu 166XAH
HEWI Pair of lever handles
in H-technology, stainless steel, satin finish surface, lever handle design 166X diameter 21.3 mm, the lever handle fulfils the guidelines of the German Federal Association of Accident Insurers (Bundesverband der Unfallkassen e. V. - BUK) (safe distance from closing edge 25 mm), and the EN 179 requirements, with square spindle 8, 8.5, 9 or 10/8 mm stepped, compatible with the following roses and backplates: 315.21XAH, 219.21XAH.
Pokaż więcej in H-technology, stainless steel, satin finish surface, lever handle design 166X diameter 21.3 mm, the lever handle fulfils the guidelines of the German Federal Association of Accident Insurers (Bundesverband der Unfallkassen e. V. - BUK) (safe distance from closing edge 25 mm), and the EN 179 requirements, with square spindle 8, 8.5, 9 or 10/8 mm stepped, compatible with the following roses and backplates: 315.21XAH, 219.21XAH.
EAN
4014885211150
grupa artykułów
Okucia do drzwi wewnętrznych
Zrównoważony rozwój
EPD
Artikelnummer
166XAH
Kwadrat
8 mm
Grubość drzwi Maks.
38,1 - 48,0 mm
Materiał
Stal

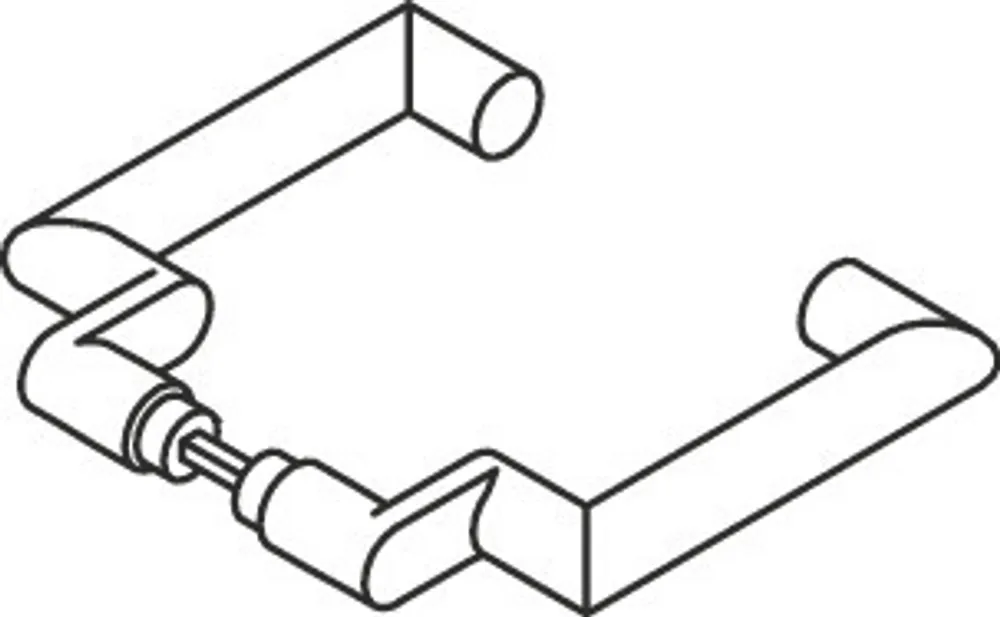

Pair of levers in H-technology
Design 166X... made of stainless steel tube in mitre cut (1.4301), diameter 21.3 mm, with stepped shoulder guide and groove, with set screw M5 as additional fixing of lever and spindle for optimal transfer of force to door leaf. The lever handle fulfils the guidelines of the German Federal Association of Accident Insurers "Bundesverbandes der Unfallkassen e. V." - BUK (safety margin to closing edge 25 mm) and the requirements of EN 179.
Surface satin finished. With square spindle 8, 8.5, 9 or 10/8 mm stepped. Compatible with the following roses and backplates:
315.21XAH, 219.21XAH
Sustainability: EPD Environmental Product Declaration
Design 166X... made of stainless steel tube in mitre cut (1.4301), diameter 21.3 mm, with stepped shoulder guide and groove, with set screw M5 as additional fixing of lever and spindle for optimal transfer of force to door leaf. The lever handle fulfils the guidelines of the German Federal Association of Accident Insurers "Bundesverbandes der Unfallkassen e. V." - BUK (safety margin to closing edge 25 mm) and the requirements of EN 179.
Surface satin finished. With square spindle 8, 8.5, 9 or 10/8 mm stepped. Compatible with the following roses and backplates:
315.21XAH, 219.21XAH
Sustainability: EPD Environmental Product Declaration
