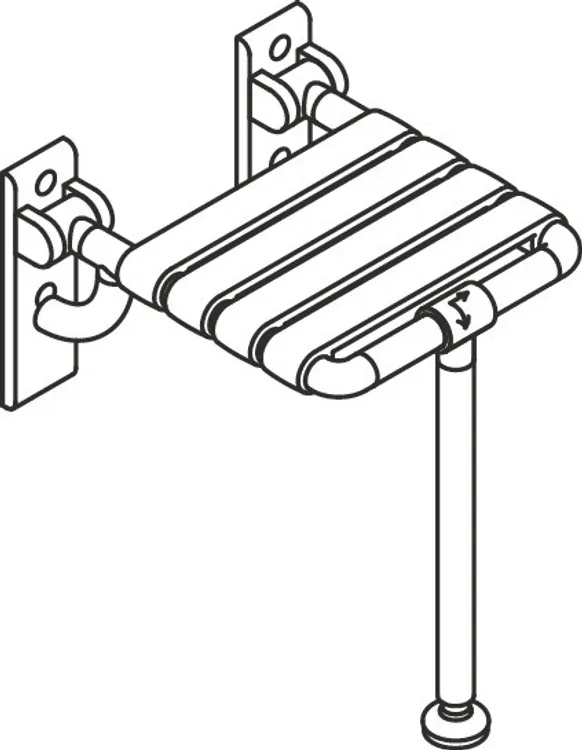

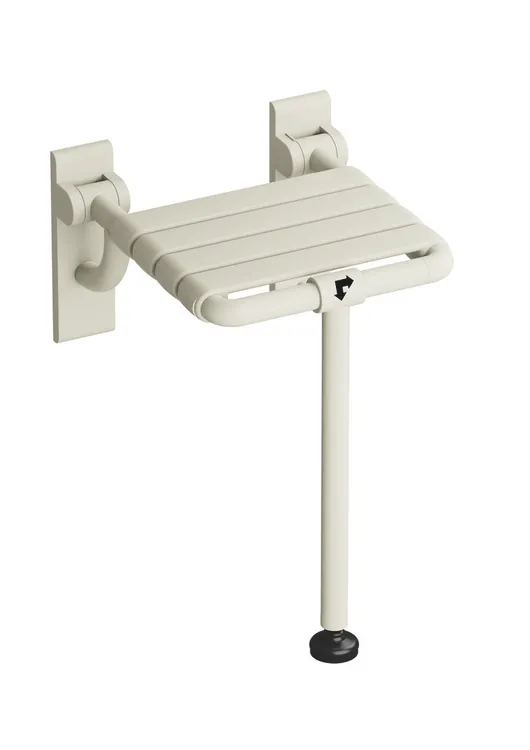

HEWI Hinged seat with floor support
with lockable floor support, made-to-measure, for absorbing vertical force, with continuous, corrosion resistant steel core and integrated wall mounting plate made of steel with high-quality matt polyamide cover, maximum weight capacity 150 kg, seat 378 mm wide and 414 mm deep, 259 mm high, seat slats 55 mm wide, floor support made to measure for seat heights up to 672 mm, made of high-quality matt polyamide in HEWI colours 99 (pure white), 98 (signal white), 97 (light grey), 95 (stone grey) and 92 (anthracite grey).
Recommendation! When ordering please clarify dimensions and/or features and options
Pokaż więcej
with lockable floor support, made-to-measure, for absorbing vertical force, with continuous, corrosion resistant steel core and integrated wall mounting plate made of steel with high-quality matt polyamide cover, maximum weight capacity 150 kg, seat 378 mm wide and 414 mm deep, 259 mm high, seat slats 55 mm wide, floor support made to measure for seat heights up to 672 mm, made of high-quality matt polyamide in HEWI colours 99 (pure white), 98 (signal white), 97 (light grey), 95 (stone grey) and 92 (anthracite grey).
Recommendation! When ordering please clarify dimensions and/or features and options
Kolor
Wariant
Podpórka
Materiał Siedziska/ Oparcia
Poliamid, matowy
Materiał
Poliamid, matowy
Range 801 Hinged seat
- made of rails and seat slats
- with continuous, corrosion resistant steel core
- with made-to-measure floor support for absorbing vertical application of force
- with extra large floor mount
- can be folded up
- adjustable seat tilt
- used for safe sitting in the shower area
- maximum weight capacity 150 kg
- wall mounting plate made of polyamide with integrated steel core
- mounting on the wall with HEWI wall-specific fixing material made of stainless steel
- 378 mm wide, 414 mm deep
- seat slats 55 mm wide
- made of high-quality matt polyamide in HEWI colours 99 (pure white), 98 (signal white), 97 (light grey), 95 (stone grey) and 92 (anthracite grey)
- floor support made to measure for seat heights up to 672 mm
- floor support a broad bottomed buffer to protect soft floor coverings
- made of rails and seat slats
- with continuous, corrosion resistant steel core
- with made-to-measure floor support for absorbing vertical application of force
- with extra large floor mount
- can be folded up
- adjustable seat tilt
- used for safe sitting in the shower area
- maximum weight capacity 150 kg
- wall mounting plate made of polyamide with integrated steel core
- mounting on the wall with HEWI wall-specific fixing material made of stainless steel
- 378 mm wide, 414 mm deep
- seat slats 55 mm wide
- made of high-quality matt polyamide in HEWI colours 99 (pure white), 98 (signal white), 97 (light grey), 95 (stone grey) and 92 (anthracite grey)
- floor support made to measure for seat heights up to 672 mm
- floor support a broad bottomed buffer to protect soft floor coverings
