{Edycja mat
Numer artykułu 801.50B245S 92}

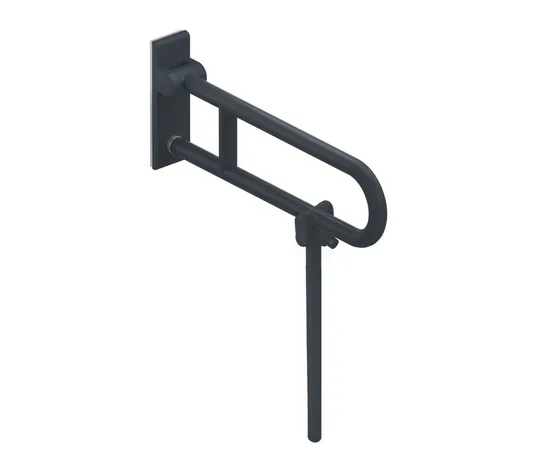

HEWI Range 801 Mobile hinged support rail
with floor support made to measure, two parallel rails, arranged on top of each other, weight capacity up to 100 kg, with continuous, corrosion resistant steel core, for mobile use, for retrofitting on mounting plate 950.50.016, must be ordered separately, projection 750 mm, 252 mm high and 78 mm wide, rail diameter 33 mm, made of high-quality matt polyamide in HEWI colours 99 (pure white), 98 (signal white), 97 (light grey), 95 (stone grey) and 92 (anthracite grey), produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices, fulfils the requirements applicable in Belgium (CWATUPE, WVG Vlaanderen) in respect of the projection of the hinged support rail on the toilet.
Pokaż więcej
with floor support made to measure, two parallel rails, arranged on top of each other, weight capacity up to 100 kg, with continuous, corrosion resistant steel core, for mobile use, for retrofitting on mounting plate 950.50.016, must be ordered separately, projection 750 mm, 252 mm high and 78 mm wide, rail diameter 33 mm, made of high-quality matt polyamide in HEWI colours 99 (pure white), 98 (signal white), 97 (light grey), 95 (stone grey) and 92 (anthracite grey), produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices, fulfils the requirements applicable in Belgium (CWATUPE, WVG Vlaanderen) in respect of the projection of the hinged support rail on the toilet.
Hilfsmittelnummer
04.40.05.1254
Funkcja
uchylna
Wersja
suitable for both sides
Wymiar
750 mm
Kolor
Wariant
Podpórka
Montaż
mobilny
Materiał
Poliamid, matowy
Rdzeń
Rdzeń stalowy
Supplied only with wall-specific HEWI fixing material (Stainless steel).
Range 801 mobile hinged support rail
- with floor support made to measure
- two parallel rails running one above the other joined by a connecting bend
- for holding on to and providing support
- weight capacity 100 kg
- with continuous, corrosion resistant steel core
- can be folded upwards and, folded downwards with braking mechanism
- for mobile use
- for easy and flexible retrofitting on existing, preassembled mounting plate 950.50.016, must be ordered separately
- toolless and quick installation by simple attachment of the mobile hinged support rail
- secured by fixing screw to prevent unintentional removal
- 750 mm projection, 252 mm high and 78 mm wide, 33 mm rail diameter
- made of high-quality matt polyamide in HEWI colours 99 (pure white), 98 (signal white), 97 (light grey), 95 (stone grey) and 92 (anthracite grey)
- toilet roll holder 801.50B011 and WC flushing mechanism (radio-controlled) 801.50B060 for retrofitting
- produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices
- fulfils the requirements applicable in Belgium (CWATUPE, WVG Vlaanderen) in respect of the projection of the hinged support rail on the toilet
- with floor support made to measure
- two parallel rails running one above the other joined by a connecting bend
- for holding on to and providing support
- weight capacity 100 kg
- with continuous, corrosion resistant steel core
- can be folded upwards and, folded downwards with braking mechanism
- for mobile use
- for easy and flexible retrofitting on existing, preassembled mounting plate 950.50.016, must be ordered separately
- toolless and quick installation by simple attachment of the mobile hinged support rail
- secured by fixing screw to prevent unintentional removal
- 750 mm projection, 252 mm high and 78 mm wide, 33 mm rail diameter
- made of high-quality matt polyamide in HEWI colours 99 (pure white), 98 (signal white), 97 (light grey), 95 (stone grey) and 92 (anthracite grey)
- toilet roll holder 801.50B011 and WC flushing mechanism (radio-controlled) 801.50B060 for retrofitting
- produced in accordance with CE- and UKCA-Regulation (EU) 2017/745 on medical devices
- fulfils the requirements applicable in Belgium (CWATUPE, WVG Vlaanderen) in respect of the projection of the hinged support rail on the toilet
Nagrody za wzornictwo
Przyznane przez
Pliki do pobrania
Dokumenty
| Tabelą kolorów | Link | |
| Wideo produktu 1 | Link |
Mobilny uchwyt ścienny
