Numer artykułu 160XA.2500G6

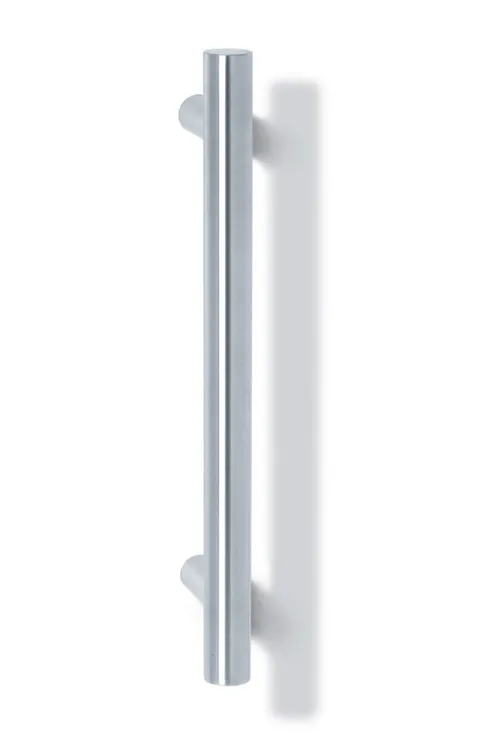

HEWI System 162 Pull Handle
Straight handle with indented straight supports, stainless steel, Surface satin finished, handle length within range from 300 mm to 1399 mm, made of round tube 25 mm diameter, 1.5 mm wall thickness, for one-sided and paired (double-sided) fixing.
Recommendation! When ordering please clarify dimensions and/or features and options
Pokaż więcej Straight handle with indented straight supports, stainless steel, Surface satin finished, handle length within range from 300 mm to 1399 mm, made of round tube 25 mm diameter, 1.5 mm wall thickness, for one-sided and paired (double-sided) fixing.
Recommendation! When ordering please clarify dimensions and/or features and options
DIN Kierunek
Lewa/Prawa
Kształt podpory
prosty
Średnica uchwytu
25 mm
Podstawowy kolor uchwytu do pchania
optyka stali szlachetnej
Materiał
Stal
Stainless steel pull handle

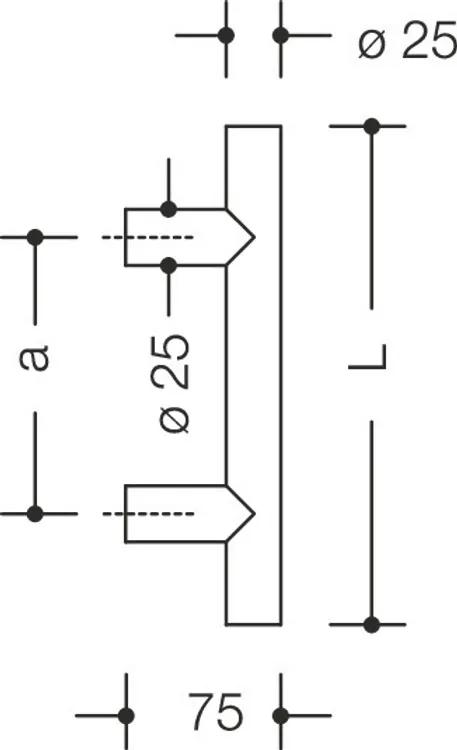

System 162 made of a tube (1.4301) diameter 25 mm, 1.5 thick, for one-sided and paired fixing on glass, wooden, PVC and metal doors (aluminium: 1 to 3-chamber, steel: 1 chamber profiles),
Load bearing capacity under alternating load 100 kg on wooden and metal doors, 50 kg on PVC doors, with 2 fixing points, fixing outside the lock area or within the lock area, as well as fixing through the lock.

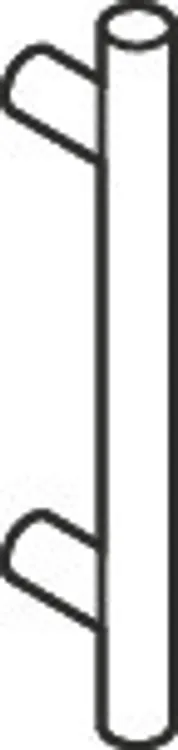

Straight handle with indented straight support posts prepared for mounting on leaf doors.
Surface satin finished
State required handle length within range from 300 mm to 1399 mm
System 162 made of a tube (1.4301) diameter 25 mm, 1.5 thick, for one-sided and paired fixing on glass, wooden, PVC and metal doors (aluminium: 1 to 3-chamber, steel: 1 chamber profiles),
Load bearing capacity under alternating load 100 kg on wooden and metal doors, 50 kg on PVC doors, with 2 fixing points, fixing outside the lock area or within the lock area, as well as fixing through the lock.
Straight handle with indented straight support posts prepared for mounting on leaf doors.
Surface satin finished
State required handle length within range from 300 mm to 1399 mm
Pliki do pobrania
| Rodzaje mocowania | ||
| Arkusz danych produktu | ||
| Uwaga dotycząca montażu |
