{Numer artykułu 162XAH23.230}

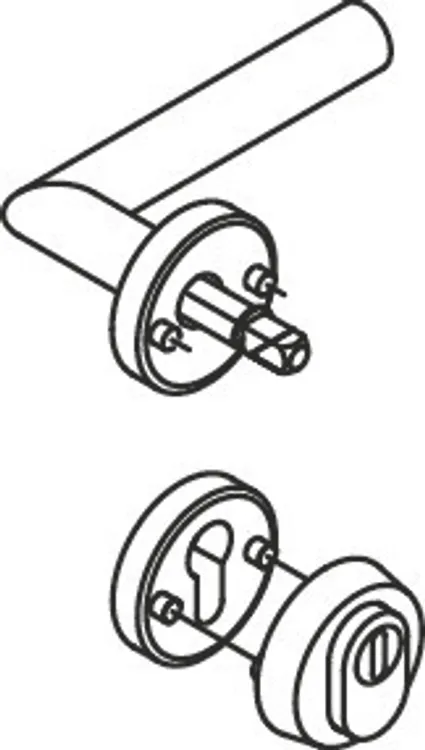

HEWI Half fitting with security escutcheon and cylinder cover
in H-technology with roses according to DIN 18255 and EN 1906 made of stainless steel, Protection class: ES 1 pursuant to DIN 18257, Surface satin finished, consisting of: lever handle 162XAH, diameter 21.3 mm, roses 305.21XAH, with integrated spring-assisted restraining "hold-up" module. Rose cap, round, Diameter 55 mm, 10.5 mm high, 1.5 mm wall thickness. Security escutcheon 306.23XAESZRC made of stainless steel with cylinder cover, external rose, solid, Diameter 55 mm, 14 mm high, hardened, with cylinder cover, Internal rose FS type, diameter 55 mm, 10.5 mm high.
user category: Class 4
Fire door fitting with square 9 mm spindle, according to DIN 18273
Fire resistance: Class B1
Recommendation! When ordering please clarify dimensions and/or features and options
Pokaż więcej
in H-technology with roses according to DIN 18255 and EN 1906 made of stainless steel, Protection class: ES 1 pursuant to DIN 18257, Surface satin finished, consisting of: lever handle 162XAH, diameter 21.3 mm, roses 305.21XAH, with integrated spring-assisted restraining "hold-up" module. Rose cap, round, Diameter 55 mm, 10.5 mm high, 1.5 mm wall thickness. Security escutcheon 306.23XAESZRC made of stainless steel with cylinder cover, external rose, solid, Diameter 55 mm, 14 mm high, hardened, with cylinder cover, Internal rose FS type, diameter 55 mm, 10.5 mm high.
user category: Class 4
Fire door fitting with square 9 mm spindle, according to DIN 18273
Fire resistance: Class B1
Recommendation! When ordering please clarify dimensions and/or features and options
Wymiar X
9,1 - 19,0 mm
holding-up spring
TAK - ze sprężyną
DIN Kierunek
Lewa/Prawa
EAN
4014885364214
Nachhaltigkeit
EPD
Artikelnummer
162XAH23.230
Perforacja
PZ - cylinder profilowy
Kwadrat
8 mm
Technologia
Technologia H
Grubość drzwi Maks.
38,1 - 43,0 mm
Szyldy/rozety
Rozeta okrągła
Materiał
Stal
Rodzaj zestawu
Półzestaw z rozetą antywłam
Half fitting with security escutcheon with cylinder cover (ES1)
in H-technology with roses according to DIN 18255 and EN 1906 made of stainless steel, consisting of:
Lever handle 162X made of stainless steel tube in mitre cut (1.4301), diameter 21.3 mm with 1.5 mm wall thickness, with stepped shoulder guide and groove, with set screw M5 as additional fixing of lever and spindle for optimal transfer of force to door leaf.
Installed by simply latching the lever handle into the base parts preassembled on the door. The latching can be released using the dismantling tool.
Rose 305...XAH, composite synthetic material and steel rose substructure with black zinc/nickel surface for optimum corrosion protection, integrated spring-assisted restraining "hold-up" module, can be used for left or right-hand opening doors, supporting the lock for longer durability. Fixed rotating bearing of the lever handle with automatically latching all-round locking and 5 mm journal as maintenance-free plain bearing with elastic compensating area, to cancel the possible mounting inaccuracies. Concealed, single-sided assembly by pivot disappearing into the door leaf.
Rose cap round, made of stainless steel (1.4301), diameter 55 mm, 10.5 mm high, 1.5 mm wall thickness.
Security escutcheon 306.23XAESZRC made of stainless steel with cylinder cover, external escutcheon, solid, diameter 55 mm, 14 mm, hardened, with cylinder cover, conical design, as protection against violent twisting, Interior rose FS version in polyamide composite steel, diameter 55 mm, 10.5 mm high, concealed, for paired mounting, delivery with screws M 5, holes for profile cylinder (PZ and KABA), cylinder projections: 10.5 -15 mm
Surface satin finished
Protection class: ES 1 pursuant to DIN 18257, can be used on anti-burglary elements pursuant to DIN EN 1627-1630
Designed and tested for the projects segment, user category to EN 1906 - Class 4 fire door fitting with spindle 9 mm, according to DIN 18273
user category: Class 4
Durability: Class 7
Door weight: No classification specified
Fire resistance: Class B1
Safety: Class 1
Corrosion resistance: Class 4
Burglary protection: Class 1
Design-type: A
Sustainability: EPD Environmental Product Declaration
in H-technology with roses according to DIN 18255 and EN 1906 made of stainless steel, consisting of:
Lever handle 162X made of stainless steel tube in mitre cut (1.4301), diameter 21.3 mm with 1.5 mm wall thickness, with stepped shoulder guide and groove, with set screw M5 as additional fixing of lever and spindle for optimal transfer of force to door leaf.
Installed by simply latching the lever handle into the base parts preassembled on the door. The latching can be released using the dismantling tool.
Rose 305...XAH, composite synthetic material and steel rose substructure with black zinc/nickel surface for optimum corrosion protection, integrated spring-assisted restraining "hold-up" module, can be used for left or right-hand opening doors, supporting the lock for longer durability. Fixed rotating bearing of the lever handle with automatically latching all-round locking and 5 mm journal as maintenance-free plain bearing with elastic compensating area, to cancel the possible mounting inaccuracies. Concealed, single-sided assembly by pivot disappearing into the door leaf.
Rose cap round, made of stainless steel (1.4301), diameter 55 mm, 10.5 mm high, 1.5 mm wall thickness.
Security escutcheon 306.23XAESZRC made of stainless steel with cylinder cover, external escutcheon, solid, diameter 55 mm, 14 mm, hardened, with cylinder cover, conical design, as protection against violent twisting, Interior rose FS version in polyamide composite steel, diameter 55 mm, 10.5 mm high, concealed, for paired mounting, delivery with screws M 5, holes for profile cylinder (PZ and KABA), cylinder projections: 10.5 -15 mm
Surface satin finished
Protection class: ES 1 pursuant to DIN 18257, can be used on anti-burglary elements pursuant to DIN EN 1627-1630
Designed and tested for the projects segment, user category to EN 1906 - Class 4 fire door fitting with spindle 9 mm, according to DIN 18273
user category: Class 4
Durability: Class 7
Door weight: No classification specified
Fire resistance: Class B1
Safety: Class 1
Corrosion resistance: Class 4
Burglary protection: Class 1
Design-type: A
Sustainability: EPD Environmental Product Declaration
