{Numer artykułu 306.23ES 95}
HEWI security escutcheon

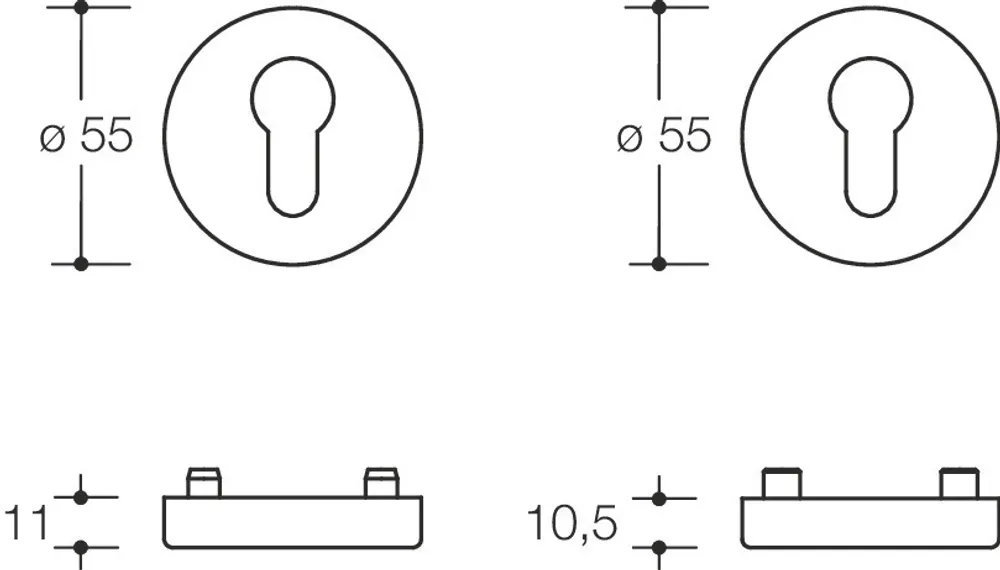

in polyamide-steel composite, external rose 55 mm diameter, 10.5 mm high, internal rose FS type, diameter 55 mm, 10.5 mm high, for cylinder projections: 7 - 12 mm. Supplied with screws M 5.
Pokaż więcej
in polyamide-steel composite, external rose 55 mm diameter, 10.5 mm high, internal rose FS type, diameter 55 mm, 10.5 mm high, for cylinder projections: 7 - 12 mm. Supplied with screws M 5.
EAN
4014884701454
Kolor
Artikelnummer
306.23ES 95
Perforacja
PZ - cylinder profilowy
Grubość drzwi Maks.
83,1 - 88,0 mm
Materiał
Poliamid

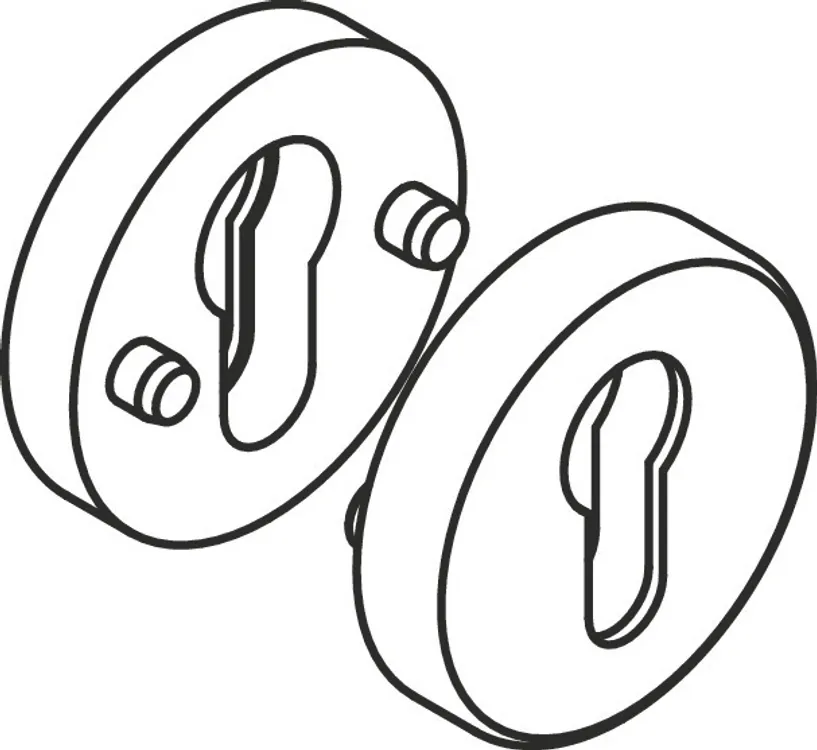

Security escutcheon
in polyamide-steel composite,
external rose 55 mm diameter, 10.5 mm high,
base, conical shape, as protection against forced twisting off
internal rose, FS type, 55 mm diameter, 10.5 mm high,
concealed screw fixing, for installation in pairs, supplied with screws M 5,
holes for profiled cylinder (Euro cylinder and KABA), for cylinder projections: 7 - 12 mm.
The security escutcheon conforms to the requirements of DIN 18273
in polyamide-steel composite,
external rose 55 mm diameter, 10.5 mm high,
base, conical shape, as protection against forced twisting off
internal rose, FS type, 55 mm diameter, 10.5 mm high,
concealed screw fixing, for installation in pairs, supplied with screws M 5,
holes for profiled cylinder (Euro cylinder and KABA), for cylinder projections: 7 - 12 mm.
The security escutcheon conforms to the requirements of DIN 18273
Pliki do pobrania
| Pomoc przy zamawianiu HEWI_Classification-of-item-numbers.pdf | ||
| Arkusz danych produktu | ||
| Instrukcja montażu |
Dokumenty
| Tabelą kolorów | Link |
Rozeta antywłam.
