Numer artykułu 316ESZ 99
HEWI security escutcheon
in polyamide-steel composite with cylinder cover, External rose oval 72 x 37, 14 mm high, Internal rose FS type, oval 72 x 31 mm, 10.5 mm high, Cylinder projections: 8 - 14 mm, the HEWI security escutcheon conforms to the requirements of DIN 18273, Supplied without screws.
Pokaż więcej in polyamide-steel composite with cylinder cover, External rose oval 72 x 37, 14 mm high, Internal rose FS type, oval 72 x 31 mm, 10.5 mm high, Cylinder projections: 8 - 14 mm, the HEWI security escutcheon conforms to the requirements of DIN 18273, Supplied without screws.
EAN
4014884814475
grupa artykułów
Komponenty | Części zamienne
Kolor
Artikelnummer
316ESZ 99
Materiał
Poliamid

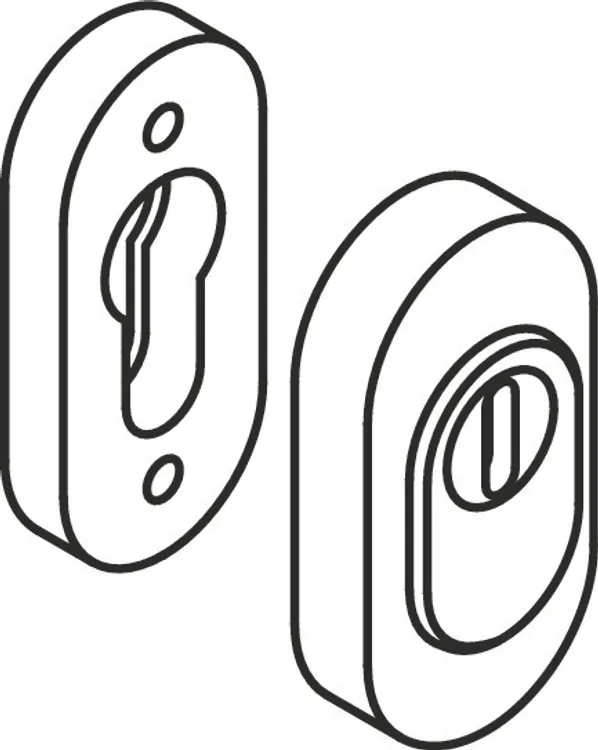

Security escutcheon
in polyamide-steel composite with cylinder cover,

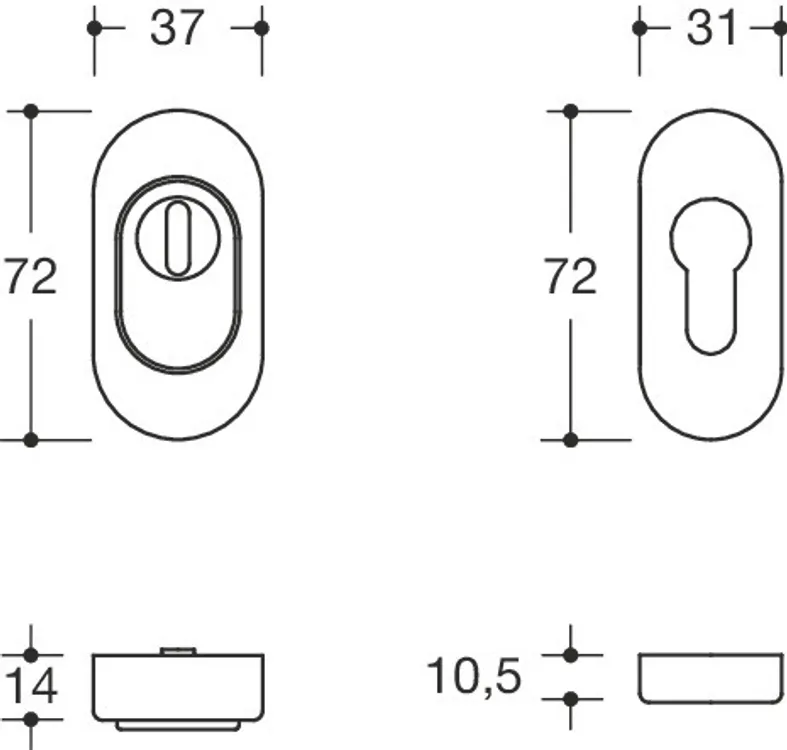

External rose oval 72 x 37 mm, 14 mm high,
hardened base, with integrated cylinder cover, with supporting surround,
conical shape, as protection against forced twisting off
Internal rose FS type, oval 72 x 31 mm, 10.5 mm high,
concealed screw fixing, for screw-on installation, supplied without screws
Holes for profiled cylinder (Euro (PZ)), for cylinder projections: 8 - 14 mm
The security escutcheon conforms to the requirements of DIN 18273
in polyamide-steel composite with cylinder cover,
External rose oval 72 x 37 mm, 14 mm high,
hardened base, with integrated cylinder cover, with supporting surround,
conical shape, as protection against forced twisting off
Internal rose FS type, oval 72 x 31 mm, 10.5 mm high,
concealed screw fixing, for screw-on installation, supplied without screws
Holes for profiled cylinder (Euro (PZ)), for cylinder projections: 8 - 14 mm
The security escutcheon conforms to the requirements of DIN 18273
