Edycja mat
Numer artykułu 306.23PBNR 99
HEWI WC rose with turn knob
rose base made of synthetic material, bathroom toilet locks with thumb turn and rose with red/white indicator, emergency opening by means of square awl or coin, rose cover cap, round, diameter 55 mm, 10.5 mm high, Supplied with screws.
Pokaż więcej
rose base made of synthetic material, bathroom toilet locks with thumb turn and rose with red/white indicator, emergency opening by means of square awl or coin, rose cover cap, round, diameter 55 mm, 10.5 mm high, Supplied with screws.
EAN
4014885579755
Element funkcyjny
Rozety
Kolor
Artikelnummer
306.23PBNR 99
Typ otwierania awaryjnego
FBM wolne-zajęte na monetę
Zatrzask kwadratowy
8 mm
Technologia
Technologia R
Grubość drzwi Maks.
38,1 - 43,0 mm
Szyldy/rozety
Rozeta okrągła
Materiał
Poliamid, matowy
Rodzaj zestawu
Zestawy klamek WC
WC-Rose
made of matt polyamide, solid colour,

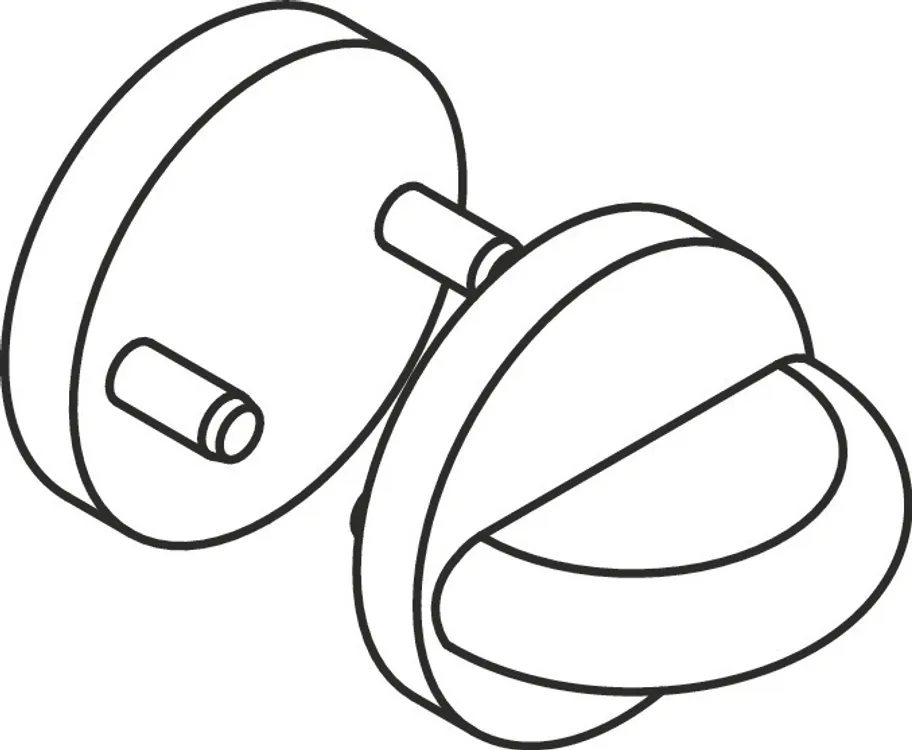

Synthetic material rose substructure, can be used for left and right-hand opening doors. Concealed, non-loosening screwed joint with 5 mm Spax screws and the support/expansion pivot disappearing into the door leaf. WC version with emergency opening by means of square spindle or coin and occupancy disc (red/white indicator) on the outside (long stems). turnknob on the inside (short stems).

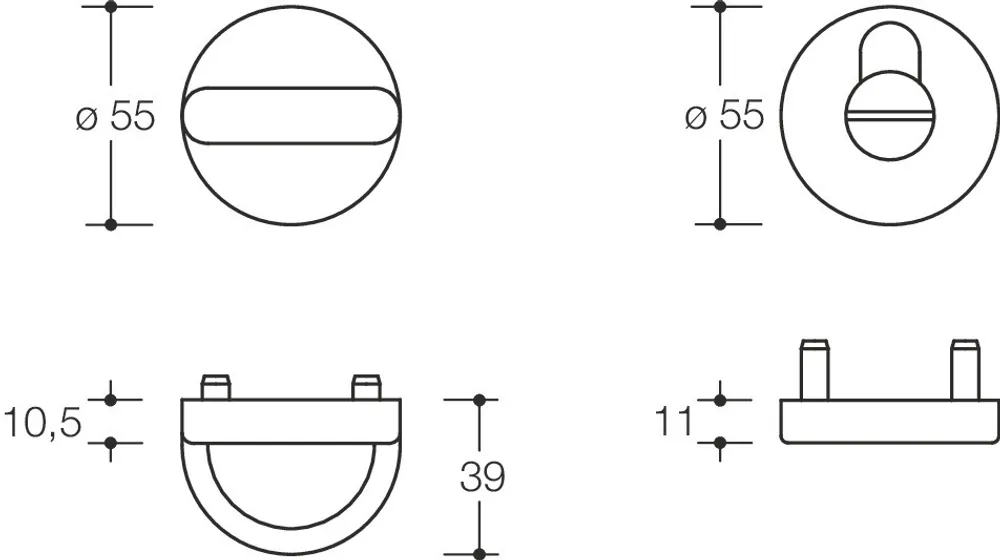

Rose cap round, made of matt polyamide, diameter 55 mm, 10.5 mm high, flat, 1.5 mm wall thickness.
supplied incl. screws
made of matt polyamide, solid colour,
Synthetic material rose substructure, can be used for left and right-hand opening doors. Concealed, non-loosening screwed joint with 5 mm Spax screws and the support/expansion pivot disappearing into the door leaf. WC version with emergency opening by means of square spindle or coin and occupancy disc (red/white indicator) on the outside (long stems). turnknob on the inside (short stems).
Rose cap round, made of matt polyamide, diameter 55 mm, 10.5 mm high, flat, 1.5 mm wall thickness.
supplied incl. screws
Nagrody za wzornictwo
Przyznane przez
Rozeta WC
Edycja mat
Numer artykułu 306.23PBNR 99
