Numer artykułu 235.23R 99

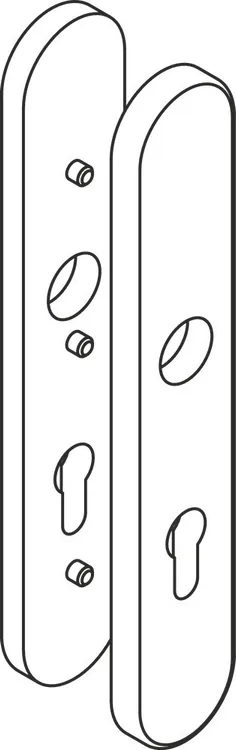

HEWI Backplate, long

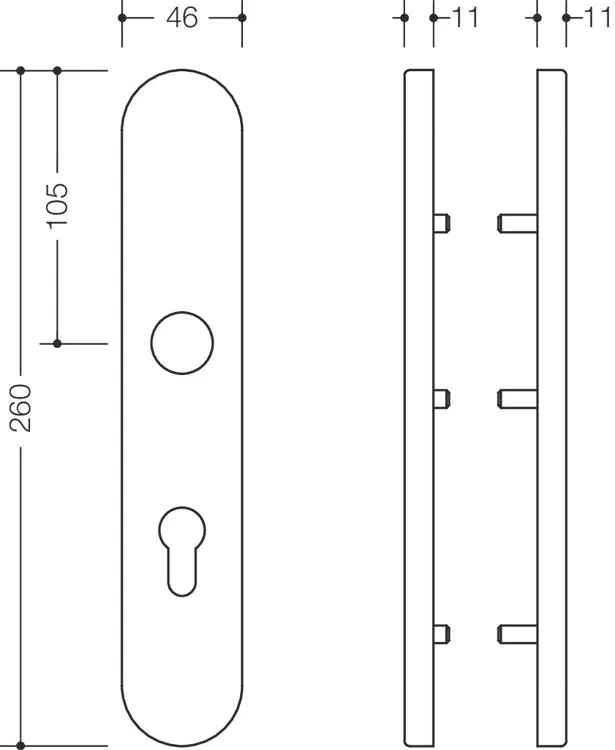

in R-technology made of polyamide, high-gloss surface, for lever handle diameter 23 mm, backplate base made of polyamide-stainless steel composite, backplate cover cap, 46 x 260 mm, 10.5 mm high, flat, 1.5 mm wall thickness, Supplied with screws.
Pokaż więcej
in R-technology made of polyamide, high-gloss surface, for lever handle diameter 23 mm, backplate base made of polyamide-stainless steel composite, backplate cover cap, 46 x 260 mm, 10.5 mm high, flat, 1.5 mm wall thickness, Supplied with screws.
EAN
4014885270379
Kolor
Artikelnummer
235.23R 99
Perforacja
PZ - cylinder profilowy
Odległość
72 mm
Technologia
Technologia R
Grubość drzwi Maks.
38,1 - 48,0 mm
Szyldy/rozety
Szyld długi
Rodzaj zestawu
Zestawy klamek pokojowych
Backplate, long
in R-technology made of polyamide, solid colour, high-gloss surface, and for handle diameter 23 mm
Backplate substructure made of synthetic material-stainless steel composite, can be used for left and right-hand opening doors. Concealed, non-loosening screwed joint with M4 screw and sleeve combination as well as the pivot disappearing into the door leaf.
Backplate cap 45 x 26 mm, 10.5 mm high, flat, 1.5 mm wall thickness.
supplied incl. screws
in R-technology made of polyamide, solid colour, high-gloss surface, and for handle diameter 23 mm
Backplate substructure made of synthetic material-stainless steel composite, can be used for left and right-hand opening doors. Concealed, non-loosening screwed joint with M4 screw and sleeve combination as well as the pivot disappearing into the door leaf.
Backplate cap 45 x 26 mm, 10.5 mm high, flat, 1.5 mm wall thickness.
supplied incl. screws
