Article number 230.20R 99

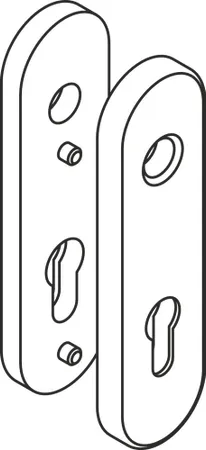

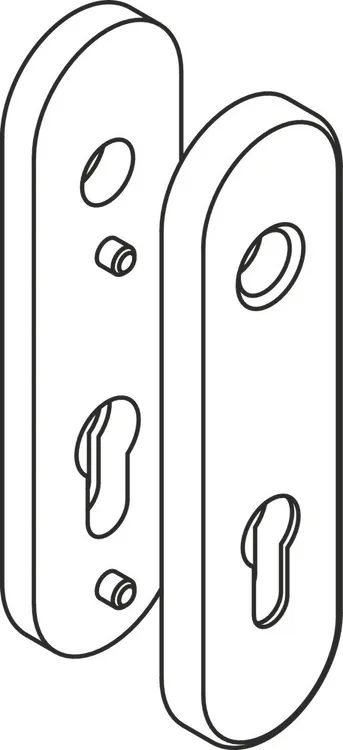

HEWI Backplate, short
in R-technology made of polyamide, high-gloss surface, for lever handle diameter 20 mm, backplate base made of polyamide-stainless steel composite, backplate cover cap, 46 x 168 mm, 11 mm high, flat, 1.5 mm wall thickness, Supplied with screws.
Show more in R-technology made of polyamide, high-gloss surface, for lever handle diameter 20 mm, backplate base made of polyamide-stainless steel composite, backplate cover cap, 46 x 168 mm, 11 mm high, flat, 1.5 mm wall thickness, Supplied with screws.
EAN
4014885274292
article group
Components | Spare parts
Fitting type
Standard door fittings
Colour
article number EAN
230.20R 99
Perforation
PZ - profile cylinder
Distance
72 mm
Door thickness
38,1 - 48,0 mm
Technology
R-technology | Class 4
Floor to wall stationary support
Backplate, short
Backplate, short
in R-technology made of polyamide, solid colour, high-gloss surface, and for handle diameter 20 mm
Backplate substructure made of synthetic material-stainless steel composite, can be used for left and right-hand opening doors. Concealed, non-loosening screwed joint with M4 screw and sleeve combination as well as the pivot disappearing into the door leaf.

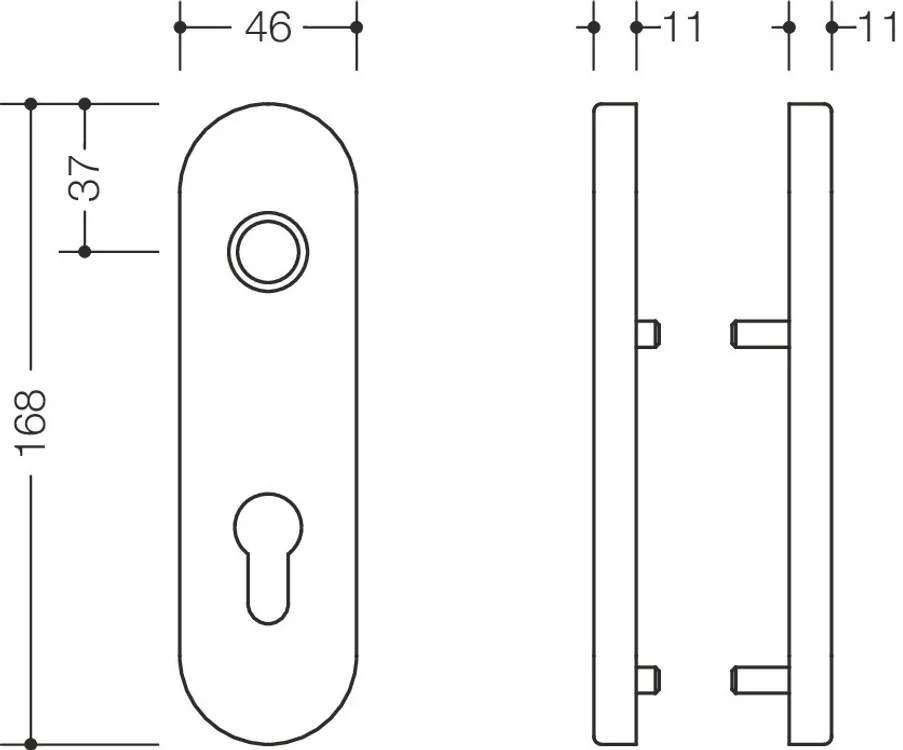

Backplate cap 46 x 168 mm, 11 mm high, flat, 1.5 mm wall thickness.
supplied incl. screws
in R-technology made of polyamide, solid colour, high-gloss surface, and for handle diameter 20 mm
Backplate substructure made of synthetic material-stainless steel composite, can be used for left and right-hand opening doors. Concealed, non-loosening screwed joint with M4 screw and sleeve combination as well as the pivot disappearing into the door leaf.
Backplate cap 46 x 168 mm, 11 mm high, flat, 1.5 mm wall thickness.
supplied incl. screws
