{short stems
Article number 230.23RKN 99}

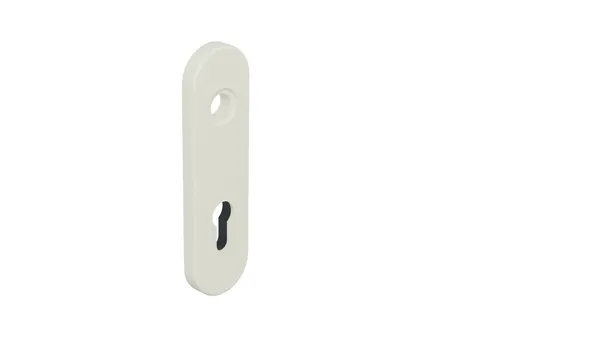

HEWI Backplate, short
short stems, in R-technology made of polyamide, high-gloss surface, for lever handle diameter 23 mm, backplate base made of polyamide-stainless steel composite, backplate cover cap, 46 x 168 mm, 11 mm high, flat, 1.5 mm wall thickness, Supplied without screws.
Show more
short stems, in R-technology made of polyamide, high-gloss surface, for lever handle diameter 23 mm, backplate base made of polyamide-stainless steel composite, backplate cover cap, 46 x 168 mm, 11 mm high, flat, 1.5 mm wall thickness, Supplied without screws.
EAN
4014885279815
Colour
article number EAN
230.23RKN 99
Perforation
PZ - profile cylinder
Distance
72 mm
Technology
R-technology | Class 4
Floor to wall stationary support
Backplate, short
Fitting type
Half fittings
Backplate, short
short stems, in R-technology made of polyamide, solid colour, high-gloss surface, and for handle diameter 23 mm
Backplate substructure made of synthetic material-stainless steel composite, can be used for left and right-hand opening doors. Concealed, non-loosening screwed joint with M4 screw and sleeve combination as well as the pivot disappearing into the door leaf.
Backplate cap 46 x 168 mm, 10.5 mm high, flat, 1.5 mm wall thickness.
Supplied without screws
short stems, in R-technology made of polyamide, solid colour, high-gloss surface, and for handle diameter 23 mm
Backplate substructure made of synthetic material-stainless steel composite, can be used for left and right-hand opening doors. Concealed, non-loosening screwed joint with M4 screw and sleeve combination as well as the pivot disappearing into the door leaf.
Backplate cap 46 x 168 mm, 10.5 mm high, flat, 1.5 mm wall thickness.
Supplied without screws
Backplate (R-technology)
