Article number 33.7010.7V 99
HEWI Cloakroom Rail with hook 7V
cloakroom rail made of rail system, diameter 33 mm, polyamide tube with corrosion-resistant steel core, with fixed double hooks version 7V, pointing forward, fixing with roses in diameter 70 mm, centre-to-centre a min, 450 mm, hook distance 150 mm, made of high-quality polyamide according to HEWI colour chart, supplied without screws and plugs.
Show more cloakroom rail made of rail system, diameter 33 mm, polyamide tube with corrosion-resistant steel core, with fixed double hooks version 7V, pointing forward, fixing with roses in diameter 70 mm, centre-to-centre a min, 450 mm, hook distance 150 mm, made of high-quality polyamide according to HEWI colour chart, supplied without screws and plugs.
article group
Cloakroom
Colour
Material
Polyamide
Min. centre to centre 450 mm with 2 double hooks.
Longer models available in 150 mm multiples.
Longer models available in 150 mm multiples.
Cloakroom rail
- with hook 33.7010.7V
- cloakroom rail made of rail system diameter 33 mm
- polyamide tube with corrosion-resistant steel core
- with fixed double hook version 7V, facing the front
- fixing with roses, diameter 70 mm
- centre-to-centre a min. 450 mm with 2 double hooks
- longer version possible, in 150 mm increments
- supplied without screws and plugs
- made of high-quality polyamide according to HEWI colour chart
- with hook 33.7010.7V
- cloakroom rail made of rail system diameter 33 mm
- polyamide tube with corrosion-resistant steel core
- with fixed double hook version 7V, facing the front
- fixing with roses, diameter 70 mm
- centre-to-centre a min. 450 mm with 2 double hooks
- longer version possible, in 150 mm increments
- supplied without screws and plugs
- made of high-quality polyamide according to HEWI colour chart
Downloads

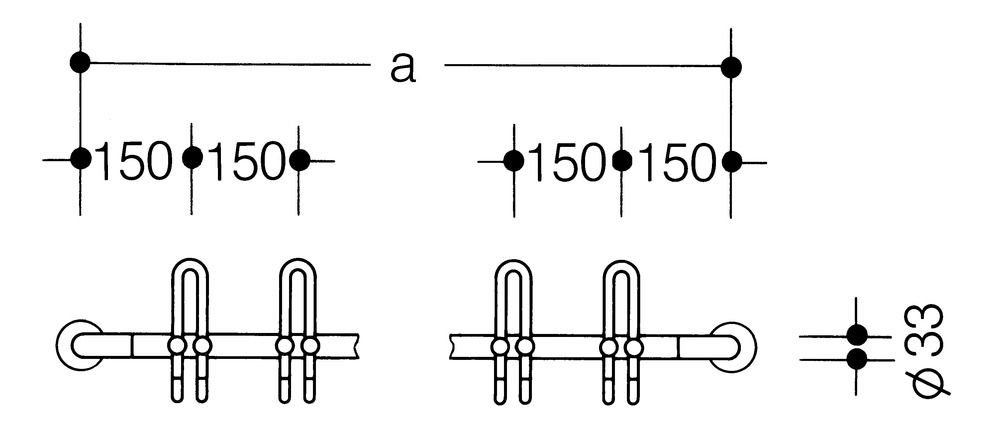

| 2D drawing | DXF | |
| Ordering aid HEWI_Cloakroom-rails_33.7010_33.7310_33.7410.pdf | ||
| Product data sheet | ||
| Cleaning and Care Instructions | ||
| Planning aid |
Documents
| Ausschreiben.de | Link | |
| Colour Chart | Link |
