{long stems
Article number 306.23LN 92}
HEWI Escutcheon
long stems, made of polyamide, high-gloss surface, rose base made of polyamide, rose cover cap, round, diameter 55 mm, 10.5 mm high, flat, 1.5 mm wall thickness, Supplied without screws.
Show more
long stems, made of polyamide, high-gloss surface, rose base made of polyamide, rose cover cap, round, diameter 55 mm, 10.5 mm high, flat, 1.5 mm wall thickness, Supplied without screws.
EAN
4014885265153
Colour
article number EAN
306.23LN 92
Perforation
PZ - profile cylinder
Technology
R-technology | Class 4
Floor to wall stationary support
Round rose
Material
Polyamide
Fitting type
Half fittings
Escutcheon
long stems, made of polyamide, solid colour, high-gloss surface
Synthetic material rose substructure, can be used for left and right-hand. Concealed, non-loosening screwed joint with 5 mm Spax screws and the support/expansion pivot disappearing into the door leaf.

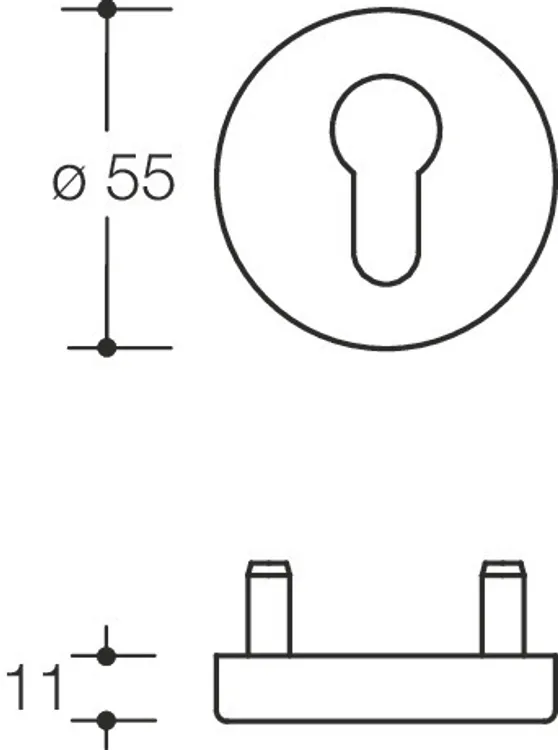

Rose cap round, diameter 55 mm, 10.5 mm high, flat, 1.5 mm wall thickness.
Supplied without screws
long stems, made of polyamide, solid colour, high-gloss surface
Synthetic material rose substructure, can be used for left and right-hand. Concealed, non-loosening screwed joint with 5 mm Spax screws and the support/expansion pivot disappearing into the door leaf.
Rose cap round, diameter 55 mm, 10.5 mm high, flat, 1.5 mm wall thickness.
Supplied without screws
