Article number 111R51.240 92
HEWI Fitting for framed doors
in R-technology according to DIN 18255 and EN 1906 made of polyamide, high-polished surface, consisting of: lever handle 111.23R, diameter 23 mm and roses 315.23R
The lever handle meets the standards of EN 179 and DIN 18040.
use category: Class 4
Recommendation! Please check all dimensions and constructional conditions in case of order!
Show more
in R-technology according to DIN 18255 and EN 1906 made of polyamide, high-polished surface, consisting of: lever handle 111.23R, diameter 23 mm and roses 315.23R
The lever handle meets the standards of EN 179 and DIN 18040.
use category: Class 4
Recommendation! Please check all dimensions and constructional conditions in case of order!
![DIN EN 179 DIN EN 179](https://catalog.hewi.com/storage/downloads/din-en-179.png)
![Umweltzertifikat EPD Umweltzertifikat EPD](https://catalog.hewi.com/storage/downloads/EPD_Logo_Muster.png)
![DIN 18040-1 DIN 18040-1](https://catalog.hewi.com/storage/downloads/din18040-1.png)
EAN
4014885507628
DIN Direction
Left/Right
Nachhaltigkeit
EPD
Square
8 mm
article number EAN
111R51.240 92
Colour
Technology
R-technology | Class 4
Fitting type
Half fittings for framed doors
Material
Polyamide
Floor to wall stationary support
Oval rose
Fitting for framed doors
in R-technology with roses according to DIN 18255 and EN 1906 made of polyamide, high-polished surface, consisting of:

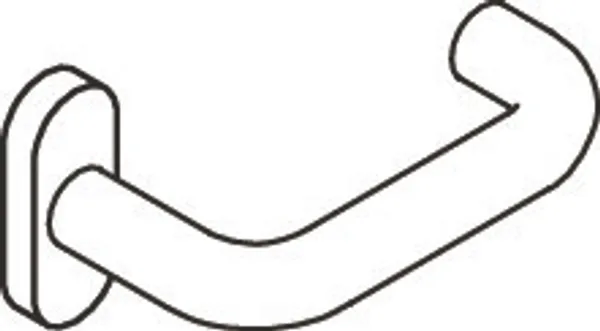

Lever handle model 111.23R U-shaped made of high-quality polyamide with corrosion resistant steel insert, solid colour, diameter 23 mm, with stepped shoulder guide and groove, easily installed by latching the lever handle into the base parts pre-mounted on the door.
The latching can be released using the dismantling tool. The lever handle meets the standards of EN 179 and DIN 18040.
Rose: model 315.23R, rose substructure made of synthetic material-stainless steel composite, can be used for left and right-hand opening doors. Fixed rotating bearing of the lever handle with automatically latching all-round locking and 5 mm journal as maintenance-free plain bearing with elastic compensating area and second journal in the neck of the lever handle. Concealed, non-loosening screwed joint.
Rose cap, oval, made of polyamide, solid colour, 32 x 72 mm, 12 mm high, flat, 1.5 mm wall thickness.
Designed and tested for the projects segment, user category to EN 1906 - Class 4 fitting with spindle 8 - 8.5 mm
user category: Class 4
Durability: Class 7
Door weight: No classification specified
Fire resistance: Class 0
Safety: Class 1
Corrosion resistance: Class 5
Burglary protection: Class 0
Design-type: U
Sustainability: EPD Environmental Product Declaration
in R-technology with roses according to DIN 18255 and EN 1906 made of polyamide, high-polished surface, consisting of:
Lever handle model 111.23R U-shaped made of high-quality polyamide with corrosion resistant steel insert, solid colour, diameter 23 mm, with stepped shoulder guide and groove, easily installed by latching the lever handle into the base parts pre-mounted on the door.
The latching can be released using the dismantling tool. The lever handle meets the standards of EN 179 and DIN 18040.
Rose: model 315.23R, rose substructure made of synthetic material-stainless steel composite, can be used for left and right-hand opening doors. Fixed rotating bearing of the lever handle with automatically latching all-round locking and 5 mm journal as maintenance-free plain bearing with elastic compensating area and second journal in the neck of the lever handle. Concealed, non-loosening screwed joint.
Rose cap, oval, made of polyamide, solid colour, 32 x 72 mm, 12 mm high, flat, 1.5 mm wall thickness.
Designed and tested for the projects segment, user category to EN 1906 - Class 4 fitting with spindle 8 - 8.5 mm
user category: Class 4
Durability: Class 7
Door weight: No classification specified
Fire resistance: Class 0
Safety: Class 1
Corrosion resistance: Class 5
Burglary protection: Class 0
Design-type: U
Sustainability: EPD Environmental Product Declaration
