{Article number 162XAH51.240}
HEWI Fitting for framed doors

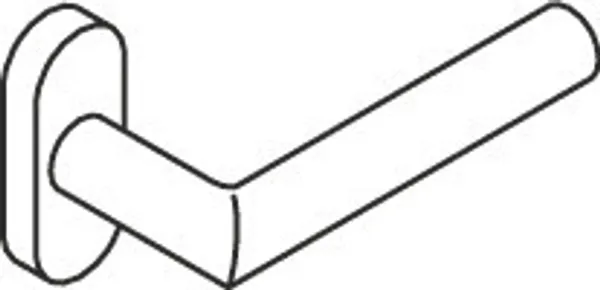

in H-technology according to DIN 18255 and EN 1906 made of stainless steel, Surface satin finished, consisting of: lever handle 162XAH, diameter 21.3 mm, rose 315.21XAH, with integrated spring-assisted restraining "hold-up" module.
user category: Class 4
Recommendation! When ordering please clarify dimensions and/or features and options
Show more
in H-technology according to DIN 18255 and EN 1906 made of stainless steel, Surface satin finished, consisting of: lever handle 162XAH, diameter 21.3 mm, rose 315.21XAH, with integrated spring-assisted restraining "hold-up" module.
user category: Class 4
Recommendation! When ordering please clarify dimensions and/or features and options
holding-up spring
NEIN - ohne Feder
DIN Direction
Left/Right
article number EAN
162XAH51.240
Square
8 mm
Technology
H-technology | Class 4
Floor to wall stationary support
Oval rose
Material
Stainless steel
Fitting type
Half fittings for framed doors
Fitting for framed doors
in H-technology with roses according to DIN 18255 and EN 1906 made of stainless steel, consisting of:
Lever handle 162X... made of stainless steel tube in mitre cut (1.4301), diameter 21.3 mm with 1.5 mm wall thickness, with stepped shoulder guide and groove, with set screw M5 as additional fixing of lever and spindle for optimal transfer of force to door leaf.
Installed by simply latching the lever handle into the base parts preassembled on the door. The latching can be released using the dismantling tool.
Roses: model 315.21X... and 316X..., 315.21X... composite synthetic material and steel rose substructure with black zinc/nickel surface for optimum corrosion protection, integrated spring-assisted restraining "hold-up" module, can be used for left or right-hand opening doors, supporting the lock for longer durability. Fixed rotating bearing of the lever handle with automatically latching all-round locking and 5 mm journal as maintenance-free plain bearing with elastic compensating area, to cancel the possible mounting inaccuracies.
Rose cap oval, made of stainless steel (1.4301), 32 x 72 mm, 12 mm high, 1.5 mm wall thickness.
Surface satin finished
Designed and tested for the projects segment, user category to EN 1906 - Class 4 fitting with spindle 8 - 8.5 mm
user category: Class 4
Durability: Class 7
Door weight: No classification specified
Fire resistance: Class 0
Safety: Class 1
Corrosion resistance: Class 4
Burglary protection: Class 0
Design-type: A
in H-technology with roses according to DIN 18255 and EN 1906 made of stainless steel, consisting of:
Lever handle 162X... made of stainless steel tube in mitre cut (1.4301), diameter 21.3 mm with 1.5 mm wall thickness, with stepped shoulder guide and groove, with set screw M5 as additional fixing of lever and spindle for optimal transfer of force to door leaf.
Installed by simply latching the lever handle into the base parts preassembled on the door. The latching can be released using the dismantling tool.
Roses: model 315.21X... and 316X..., 315.21X... composite synthetic material and steel rose substructure with black zinc/nickel surface for optimum corrosion protection, integrated spring-assisted restraining "hold-up" module, can be used for left or right-hand opening doors, supporting the lock for longer durability. Fixed rotating bearing of the lever handle with automatically latching all-round locking and 5 mm journal as maintenance-free plain bearing with elastic compensating area, to cancel the possible mounting inaccuracies.
Rose cap oval, made of stainless steel (1.4301), 32 x 72 mm, 12 mm high, 1.5 mm wall thickness.
Surface satin finished
Designed and tested for the projects segment, user category to EN 1906 - Class 4 fitting with spindle 8 - 8.5 mm
user category: Class 4
Durability: Class 7
Door weight: No classification specified
Fire resistance: Class 0
Safety: Class 1
Corrosion resistance: Class 4
Burglary protection: Class 0
Design-type: A
Fitting for framed doors
{Article number 162XAH51.240}
