Article number 900.36.0S2XA

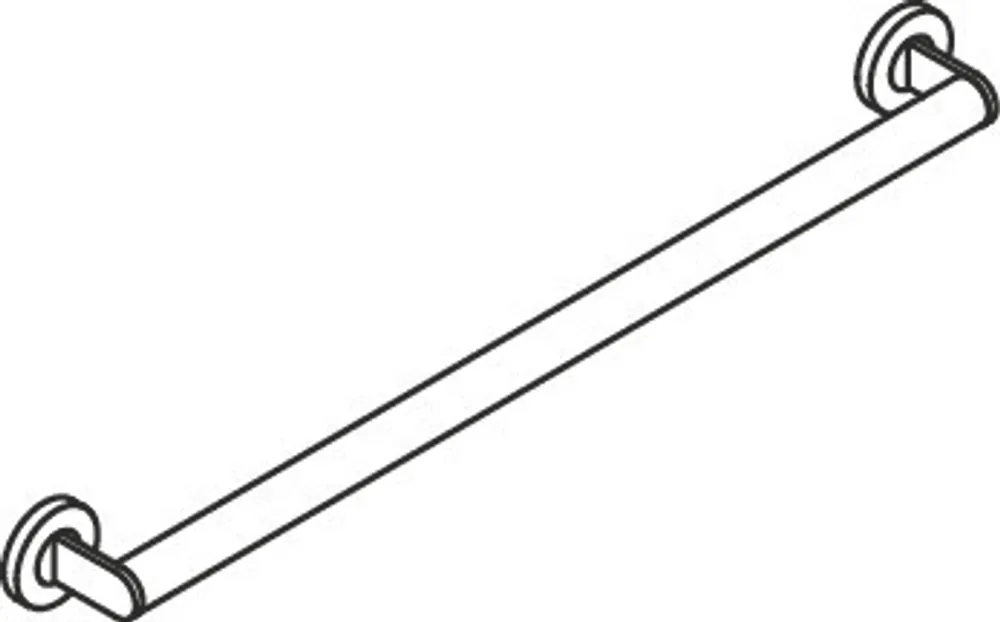

HEWI Grab bar, System 900

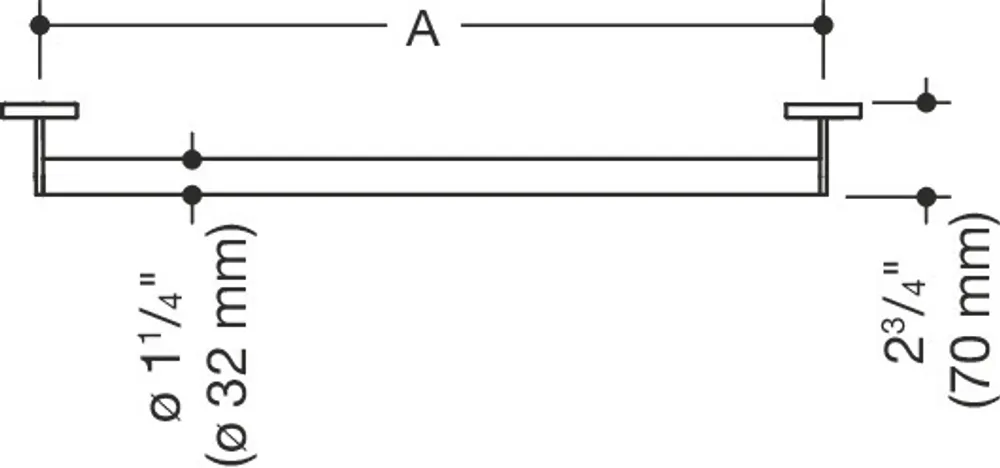

made of high-quality stainless steel, satin, straight rail with supports straight to the wall and roses, fixing spacing made-to-measure from 8 11/16 inch (220 mm) to 63 inch (1100 mm), 2 3/4 inch (70 mm) deep, rail diameter 1 1/4 inch (32 mm), tube thickness 1/16 inch (2 mm), rose diameter 2 3/4 inch (70 mm), maximum loading capacity 330 lbs (150 kg), including HEWI fixing material. Meets requirements according to 2010 ADA standards and ICC / ANSI A117.1-2017.
Show more
made of high-quality stainless steel, satin, straight rail with supports straight to the wall and roses, fixing spacing made-to-measure from 8 11/16 inch (220 mm) to 63 inch (1100 mm), 2 3/4 inch (70 mm) deep, rail diameter 1 1/4 inch (32 mm), tube thickness 1/16 inch (2 mm), rose diameter 2 3/4 inch (70 mm), maximum loading capacity 330 lbs (150 kg), including HEWI fixing material. Meets requirements according to 2010 ADA standards and ICC / ANSI A117.1-2017.
Diameter bar
32 mm
Size
Längenvariabel
Material
Stainless steel
Grab bar, System 900
- straight rail with supports straight to the wall and roses
- fixing spacing made-to-measure from 8 11/16 inch (220 mm) to 63 inch (1100 mm), 2 3/4 inch (70 mm) deep
- rail diameter 1 1/4 inch (32 mm), tube thickness 1/16 inch (2 mm), rose diameter 2 3/4 inch (70 mm)
- from 34 3/4 inch (851 mm) with additional, centrally positioned support
- maximum loading capacity 330 lbs (150 kg)
- made of high-quality stainless steel, satin
- including non-corrosive and tested HEWI fixing material for wall mounting and sealing tape for sealing the drilling points
- meets requirements according to 2010 ADA standards and ICC / ANSI A117.1-2017
- straight rail with supports straight to the wall and roses
- fixing spacing made-to-measure from 8 11/16 inch (220 mm) to 63 inch (1100 mm), 2 3/4 inch (70 mm) deep
- rail diameter 1 1/4 inch (32 mm), tube thickness 1/16 inch (2 mm), rose diameter 2 3/4 inch (70 mm)
- from 34 3/4 inch (851 mm) with additional, centrally positioned support
- maximum loading capacity 330 lbs (150 kg)
- made of high-quality stainless steel, satin
- including non-corrosive and tested HEWI fixing material for wall mounting and sealing tape for sealing the drilling points
- meets requirements according to 2010 ADA standards and ICC / ANSI A117.1-2017
Design awards
Awarded by
Documents
| Colour Chart | Link | |
| Installation video 1 | Link |
Grab bar (ADA)
Article number 900.36.0S2XA
