Article number 801.33US2S 84

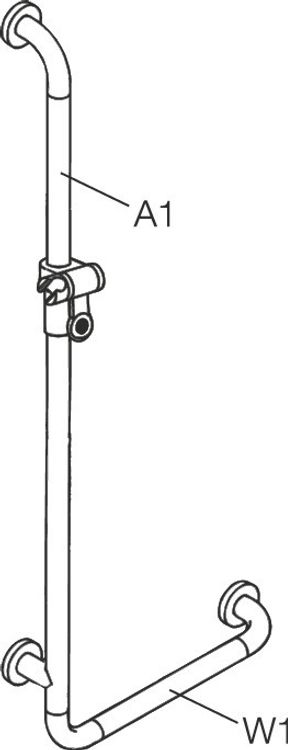

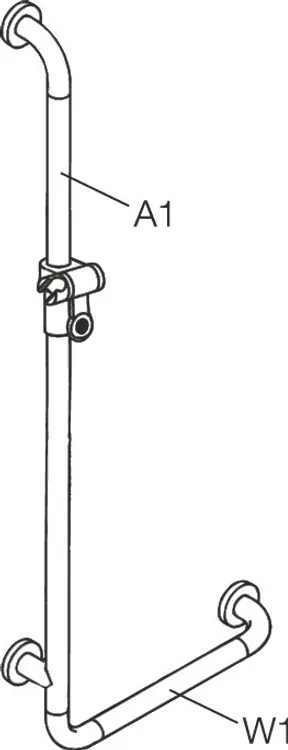

HEWI L-shaped support rail with shower head holder (USA) from Range 801
vertical and horizontal rails joined to form an L shape and fitted with rose fixings and a shower head holder, suitable for shower heads of various manufacturers, vertical length made-to-measure from 23 5/8 inch (600 mm) to 49 3/16 inch (1250 mm), horizontal lengths made-to-measure from 11 13/16 inch (300 mm) to 33 7/8 inch (850 mm), 2 3/4 inch (70 mm) deep, rail diameter 1 5/16 inch (33 mm), rose diameter 2 3/4 inch (70 mm), with continuous, corrosion resistant steel core, maximum loading capacity 330 lbs (150 kg), can be mounted in left hand or right hand position, made of high-quality polyamide in HEWI colours 99 (pure white), 95 (stone grey), 92 (anthracite grey), 90 (jet black), 86 (sand), 84 (umber) and 33 (ruby red), incl. non-corrosive HEWI fixing materials. Meets requirements according to 2010 ADA standards and ICC / ANSI A117.1-2017.
Show more
vertical and horizontal rails joined to form an L shape and fitted with rose fixings and a shower head holder, suitable for shower heads of various manufacturers, vertical length made-to-measure from 23 5/8 inch (600 mm) to 49 3/16 inch (1250 mm), horizontal lengths made-to-measure from 11 13/16 inch (300 mm) to 33 7/8 inch (850 mm), 2 3/4 inch (70 mm) deep, rail diameter 1 5/16 inch (33 mm), rose diameter 2 3/4 inch (70 mm), with continuous, corrosion resistant steel core, maximum loading capacity 330 lbs (150 kg), can be mounted in left hand or right hand position, made of high-quality polyamide in HEWI colours 99 (pure white), 95 (stone grey), 92 (anthracite grey), 90 (jet black), 86 (sand), 84 (umber) and 33 (ruby red), incl. non-corrosive HEWI fixing materials. Meets requirements according to 2010 ADA standards and ICC / ANSI A117.1-2017.
Version
continuous steel core/ steel fixing roses
Colour
Material
Polyamide
L-shaped support rail with shower head holder (USA) from Range 801
- vertical and horizontal rails joined to form an L shape and fitted with rose fixings and a shower head holder
- for holding on to and providing support in shower and bath area

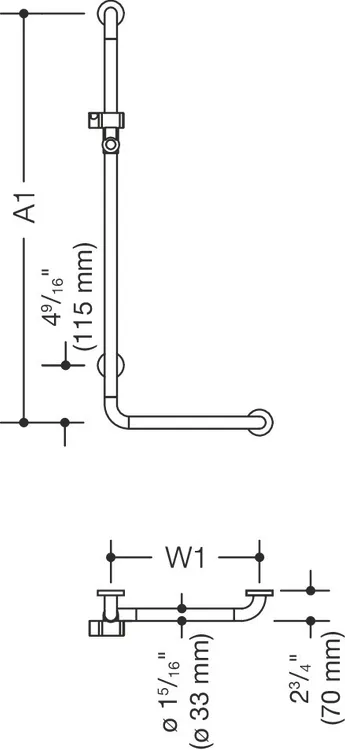

- vertical length made-to-measure from 23 5/8 inch (600 mm) to 49 3/16 inch (1250 mm), horizontal length made-to-measure from 11 13/16 inch (300 mm) to 33 7/8 inch (850 mm), 2 3/4 inch (70 mm) deep
- rail diameter 1 5/16 inch (33 mm), rose diameter 2 3/4 inch (70 mm)
- suitable for shower heads of various manufacturers
- shower head holder can be continuously tilted and, after pulling or pushing a large lever, its height can be adjusted
- conical adapter on shower head holder makes it easier to hook in the handheld shower head
- with continuous, corrosion resistant steel core
- for wall mounting with special HEWI fixing materials and roses
- can be mounted in left hand or right hand position
- maximum loading capacity 330 lbs (150 kg)
- made of high-quality polyamide in HEWI colours 99 (pure white), 95 (stone grey), 92 (anthracite grey), 90 (jet black), 86 (sand), 84 (umber) and 33 (ruby red)
- meets requirements according to 2010 ADA standards and ICC / ANSI A117.1-2017
- vertical and horizontal rails joined to form an L shape and fitted with rose fixings and a shower head holder
- for holding on to and providing support in shower and bath area
- vertical length made-to-measure from 23 5/8 inch (600 mm) to 49 3/16 inch (1250 mm), horizontal length made-to-measure from 11 13/16 inch (300 mm) to 33 7/8 inch (850 mm), 2 3/4 inch (70 mm) deep
- rail diameter 1 5/16 inch (33 mm), rose diameter 2 3/4 inch (70 mm)
- suitable for shower heads of various manufacturers
- shower head holder can be continuously tilted and, after pulling or pushing a large lever, its height can be adjusted
- conical adapter on shower head holder makes it easier to hook in the handheld shower head
- with continuous, corrosion resistant steel core
- for wall mounting with special HEWI fixing materials and roses
- can be mounted in left hand or right hand position
- maximum loading capacity 330 lbs (150 kg)
- made of high-quality polyamide in HEWI colours 99 (pure white), 95 (stone grey), 92 (anthracite grey), 90 (jet black), 86 (sand), 84 (umber) and 33 (ruby red)
- meets requirements according to 2010 ADA standards and ICC / ANSI A117.1-2017
Design awards
Awarded by
Documents
| Colour Chart | Link |
L-shaped grab bar with shower head holder (ADA)
Article number 801.33US2S 84
