Matt edition
Article number 801.22B1S 99

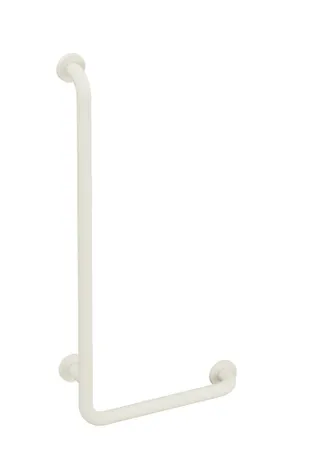

HEWI Range 801 L-shaped support rail
vertical and horizontal bars joined at right-angles with fixing roses made of steel, horizontal lengths made-to-measure from 300 mm to 850 mm, vertical length made-to-measure from 600 mm to 1100 mm, 90 mm deep, rail diameter 33 mm, rose diameter 70 mm, with continuous, corrosion resistant steel core, made of high-quality matt polyamide in HEWI colours 99 (pure white), 98 (signal white), 97 (light grey), 95 (stone grey) and 92 (anthracite grey), incl. non-corrosive HEWI fixing materials.
Recommendation! When ordering please clarify dimensions and/or features and options
Show more
vertical and horizontal bars joined at right-angles with fixing roses made of steel, horizontal lengths made-to-measure from 300 mm to 850 mm, vertical length made-to-measure from 600 mm to 1100 mm, 90 mm deep, rail diameter 33 mm, rose diameter 70 mm, with continuous, corrosion resistant steel core, made of high-quality matt polyamide in HEWI colours 99 (pure white), 98 (signal white), 97 (light grey), 95 (stone grey) and 92 (anthracite grey), incl. non-corrosive HEWI fixing materials.
Recommendation! When ordering please clarify dimensions and/or features and options
Version
continuous steel core/ steel fixing roses
Size
Längenvariabel
Colour
Angle
90° L-shaped support rail
Material
Polyamide, mat
Range 801 L-shaped support rail
- vertical and horizontal bars joined at right-angles with fixing roses made of steel
- for holding on to and providing support
- with continuous, corrosion resistant steel core
- can be mounted in left hand or right hand position
- for wall mounting with special HEWI fixing materials and roses
- horizontal length made-to-measure from 300 mm to 850 mm, vertical length made-to-measure from 600 mm to 1100 mm, 90 mm deep
- bar diameter 33 mm, rose diameter 70 mm
- made of high-quality matt polyamide in HEWI colours 99 (pure white), 98 (signal white), 97 (light grey), 95 (stone grey) and 92 (anthracite grey)
- toilet roll holder upgrade kit can be retrofitted
- vertical and horizontal bars joined at right-angles with fixing roses made of steel
- for holding on to and providing support
- with continuous, corrosion resistant steel core
- can be mounted in left hand or right hand position
- for wall mounting with special HEWI fixing materials and roses
- horizontal length made-to-measure from 300 mm to 850 mm, vertical length made-to-measure from 600 mm to 1100 mm, 90 mm deep
- bar diameter 33 mm, rose diameter 70 mm
- made of high-quality matt polyamide in HEWI colours 99 (pure white), 98 (signal white), 97 (light grey), 95 (stone grey) and 92 (anthracite grey)
- toilet roll holder upgrade kit can be retrofitted
Design awards
Awarded by
Documents
| Ausschreiben.de | Link | |
| Colour Chart | Link |
L-shaped support rail, special length
Matt edition
Article number 801.22B1S 99
