Article number 165XAHLT

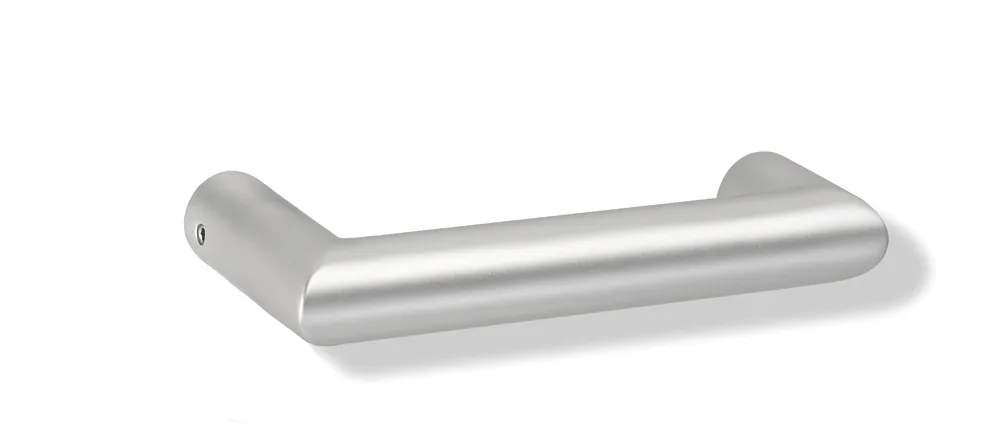

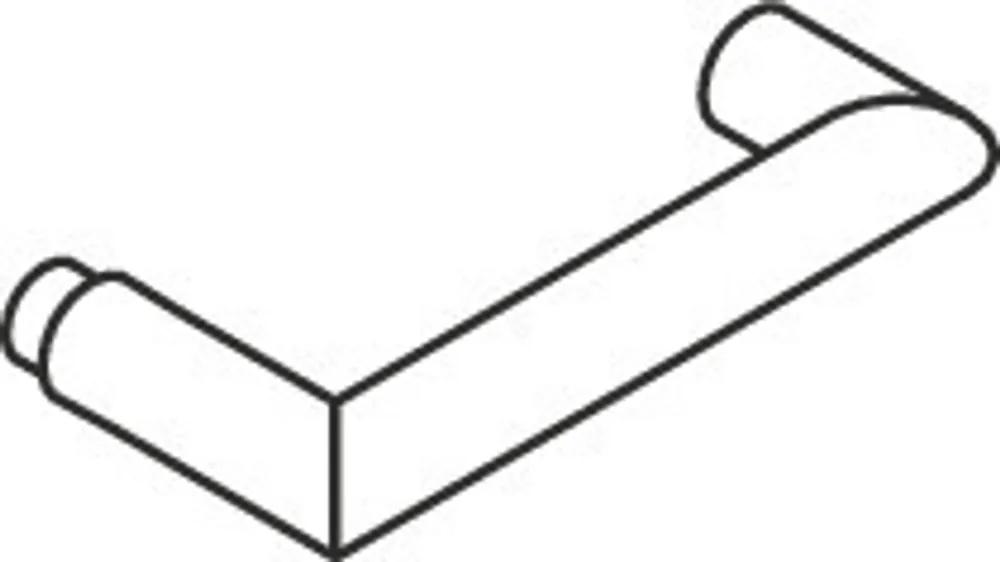

HEWI Lever handle, female part, one-sided
in H-technology, stainless steel, satin finish surface, lever handle design 165X diameter 21.3 mm, the lever handle fulfils the EN 179 requirements, for square spindle 8, 8,5, 9 or 10/8 mm stepped, compatible with the following roses and backplates: 305.21XAH, 230.21XAH, 230.21XAHNR, 315.21XAH, 219.21XAH, 219.21XAHNR.
Show more in H-technology, stainless steel, satin finish surface, lever handle design 165X diameter 21.3 mm, the lever handle fulfils the EN 179 requirements, for square spindle 8, 8,5, 9 or 10/8 mm stepped, compatible with the following roses and backplates: 305.21XAH, 230.21XAH, 230.21XAHNR, 315.21XAH, 219.21XAH, 219.21XAHNR.
EAN
4014885211358
article group
Hardware for interior doors
Sustainability
EPD
article number EAN
165XAHLT
Square
8 mm
Material
Stainless steel
Lever handle female part single H-technology
Design 165X... made of stainless steel tube in mitre cut (1.4301), diameter 21.3 mm, with stepped shoulder guide and groove, with set screw M5 as additional fixing of lever and spindle for optimal transfer of force to door leaf.
the lever handle meets the standards of EN 179.
Surface satin finished. For spindle 8, 8.5, 9 or 10/8 mm stepped. Compatible with the following roses and backplates:
305.21XAH, 230.21XAH, 230.21XAHNR, 315.21XAH, 219.21XAH, 219.21XAHNR
Sustainability: EPD Environmental Product Declaration
Design 165X... made of stainless steel tube in mitre cut (1.4301), diameter 21.3 mm, with stepped shoulder guide and groove, with set screw M5 as additional fixing of lever and spindle for optimal transfer of force to door leaf.
the lever handle meets the standards of EN 179.
Surface satin finished. For spindle 8, 8.5, 9 or 10/8 mm stepped. Compatible with the following roses and backplates:
305.21XAH, 230.21XAH, 230.21XAHNR, 315.21XAH, 219.21XAH, 219.21XAHNR
Sustainability: EPD Environmental Product Declaration
