Article number 274XAH

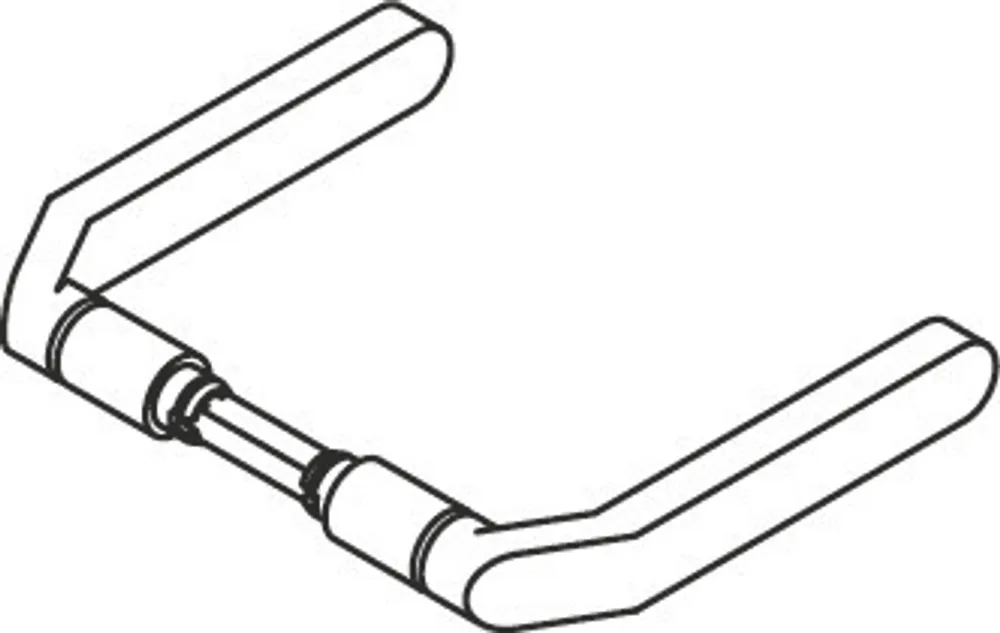

HEWI lever handle (H-technology)

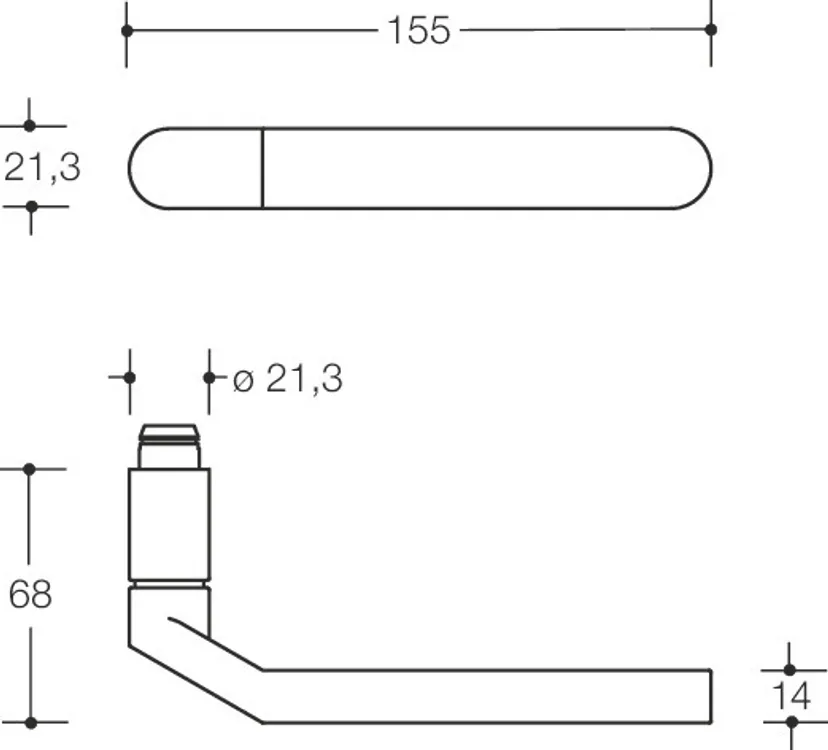

stainless steel, matt polished, H-Technology, 21.3 mm diameter.
Show more stainless steel, matt polished, H-Technology, 21.3 mm diameter.
EAN
4014885668879
article group
Hardware for interior doors
Sustainability
EPD
article number EAN
274XAH
Square
8 mm
Door thickness
38,1 - 48,0 mm
Material
Stainless steel
Pair of levers in H-technology
Model 274X... made of stainless steel, (1.4301) neck diameter 21.3. mm, with stepped shoulder guide, groove and grub screw M5 x 8. Installed by simply latching the lever handle into the base parts. The lever handle fulfils the guidelines of the German Federal Association of Accident Insurers ("Bundesverbandes der Unfallkassen e. V." - BUK) safety margin to closing edge 25 mm.
Surface satin finished. With square spindle 8, 8.5, 9 or 10/8 mm stepped. Compatible with the following roses and backplates:
315.21XAH, 219.21XAH
Sustainability: EPD Environmental Product Declaration
Model 274X... made of stainless steel, (1.4301) neck diameter 21.3. mm, with stepped shoulder guide, groove and grub screw M5 x 8. Installed by simply latching the lever handle into the base parts. The lever handle fulfils the guidelines of the German Federal Association of Accident Insurers ("Bundesverbandes der Unfallkassen e. V." - BUK) safety margin to closing edge 25 mm.
Surface satin finished. With square spindle 8, 8.5, 9 or 10/8 mm stepped. Compatible with the following roses and backplates:
315.21XAH, 219.21XAH
Sustainability: EPD Environmental Product Declaration
