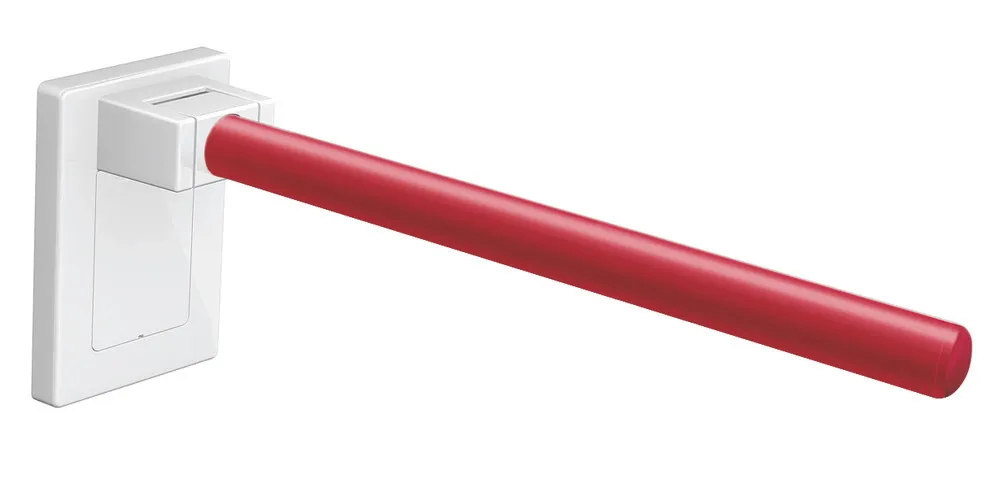

Mobile hinged support rail Mono

Supplied only with wall-specific HEWI fixing material (Stainless steel).

Mobile hinged support rail Mono System 800 K
- for easy and flexible retrofitting on existing, pre-assembled mounting plate: 950.50.014XA, must be ordered separately
- for mobile use
- with a horizontal, round gripping level with diameter 33 mm
- Used for holding and supporting
- Projection 600 mm , bracket 181 mm high and 130 mm wide
- Can be folded upwards and folded downwards with braked movement
- Stile made of high-quality polyamide according to HEWI colour chart
- Wall plate cover made of high-quality polyamide in HEWI colour 98 (signal white)
- With continuous, with continuous, anti-corrosion steel core and bracket made of steel with cover made of high-quality polyamide
- Quick and tool-free installation thanks to simple, Short suspension
- Secured against unintentional removal
- Unlocking for flexible use by means of spring actuation
- tested up to 150 kg when used with HEWI fixing material
- Recommended maximum weight of the user: 150 kg
- with toilet roll holder 950.50.01090, Toilet roll holder with toilet flush release 950.50.07090 (right) and 950.50.07190 (left) can be retrofitted
- is produced in accordance with CE and UKCA Regulation (EU) 2017/745 on medical devices
- Fulfils the DIN 18040 requirements
