Article number 900.36.0S3XA
HEWI mobile support rail, Special length
stainless steel, satin finished, centre-to-centre distance made-to-measure from 220 to 1100 mm, 32 mm diameter, easy installation due to individually mountable fixing plates made of high-quality stainless steel (included in the scope of supply) for hanging the support rail, is secured with fastening screw (theft protection).
Show more
stainless steel, satin finished, centre-to-centre distance made-to-measure from 220 to 1100 mm, 32 mm diameter, easy installation due to individually mountable fixing plates made of high-quality stainless steel (included in the scope of supply) for hanging the support rail, is secured with fastening screw (theft protection).
Diameter bar
32 mm
Size
Längenvariabel
Assembly
mobile
Material
Stainless steel
Mobile support rail, System 900
- straight rail with supports straight to the wall and roses
- for mobile use

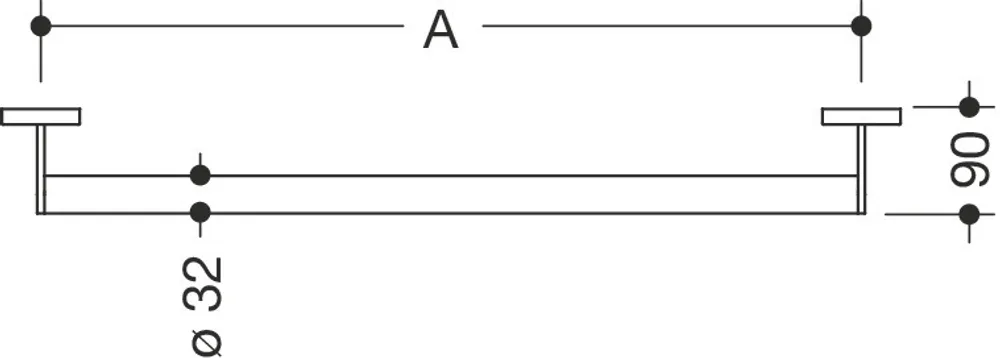

- centre-to-centre distance made-to-measure from 220 to 1100 mm, depth 90 mm
- rail diameter 32 mm, tube thickness 2 mm, rose diameter 70 mm
- easy installation due to individually mountable fixing plates made of stainless steel (included in the scope of supply), for hanging the support rail
- is secured with fastening screw (theft protection)
- made of high-quality stainless steel, satin finished
- including non-corrosive and tested HEWI fixing material for wall mounting
- Please note when using with hanging seats: Compatibility check required.
- A detailed list of possible combinations of hand rails, L-shaped rails and shower handrails with matching hanging seats can be found in our online catalogue in the download area of the respective product.
- straight rail with supports straight to the wall and roses
- for mobile use
- centre-to-centre distance made-to-measure from 220 to 1100 mm, depth 90 mm
- rail diameter 32 mm, tube thickness 2 mm, rose diameter 70 mm
- easy installation due to individually mountable fixing plates made of stainless steel (included in the scope of supply), for hanging the support rail
- is secured with fastening screw (theft protection)
- made of high-quality stainless steel, satin finished
- including non-corrosive and tested HEWI fixing material for wall mounting
- Please note when using with hanging seats: Compatibility check required.
- A detailed list of possible combinations of hand rails, L-shaped rails and shower handrails with matching hanging seats can be found in our online catalogue in the download area of the respective product.
Design awards
Awarded by
Downloads
| Ordering aid System900 Compatibility removable hanging seat and rails.pdf | ||
| Product data sheet | ||
| Installation instructions | ||
| Cleaning and Care Instructions |
Documents
| Ausschreiben.de | Link | |
| Colour Chart | Link | |
| Installation video 1 | Link |
Mobile support rail
Article number 900.36.0S3XA
