Article number 33.7010 99
HEWI Cloakroom Rail, without hook
cloakroom rail for coat hangers or sliding hooks, made of rail system, diameter 33 mm, polyamide tube with corrosion-resistant steel core, centre-to-centre a = 267 mm - 2137 mm, rose diameter 70 mm, fixing with roses in diameter 70 mm, made of high-quality polyamide according to HEWI colour chart, supplied without screws and plugs.
Show more cloakroom rail for coat hangers or sliding hooks, made of rail system, diameter 33 mm, polyamide tube with corrosion-resistant steel core, centre-to-centre a = 267 mm - 2137 mm, rose diameter 70 mm, fixing with roses in diameter 70 mm, made of high-quality polyamide according to HEWI colour chart, supplied without screws and plugs.
Colour
Please note:
Movable hooks to be ordered separately,
since not included.
Movable hooks to be ordered separately,
since not included.

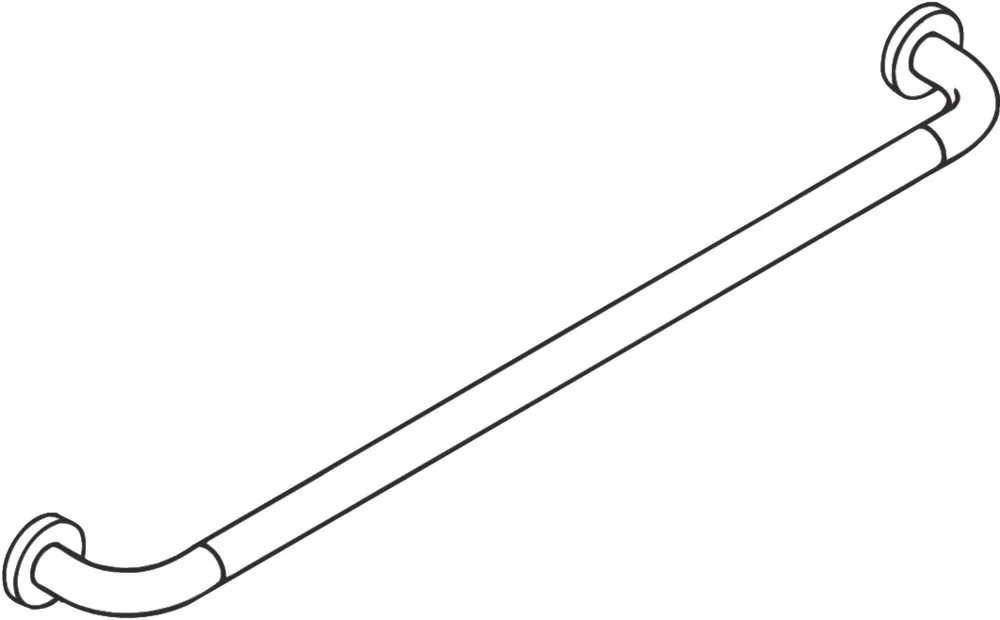

Cloakroom rail
- diameter 33 mm, without hooks, a=variable
- cloakroom rail for coat hangers or sliding hooks
- made of rail system diameter 33 mm
- polyamide tube with corrosion-resistant steel core
- centre-to-centre a = 267 mm - 2137 mm
- additional support required for lengths above 1050 mm
- fixing with roses, diameter 70 mm
- please specify other fixing types when ordering
- supplied without screws and plugs
- made of high-quality polyamide according to HEWI colour chart
- diameter 33 mm, without hooks, a=variable
- cloakroom rail for coat hangers or sliding hooks
- made of rail system diameter 33 mm
- polyamide tube with corrosion-resistant steel core
- centre-to-centre a = 267 mm - 2137 mm
- additional support required for lengths above 1050 mm
- fixing with roses, diameter 70 mm
- please specify other fixing types when ordering
- supplied without screws and plugs
- made of high-quality polyamide according to HEWI colour chart
Downloads

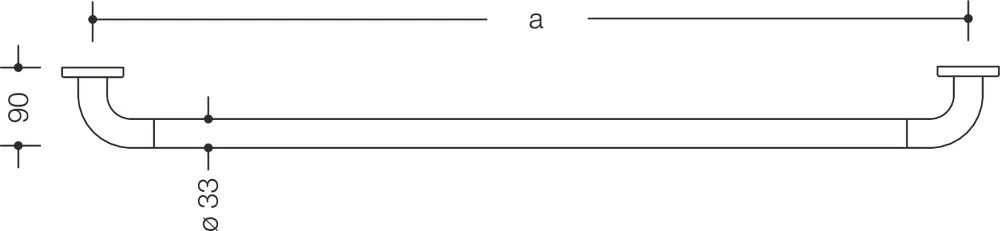

| 2D drawing | DXF | |
| 3DF | DXF | |
| Ordering aid HEWI_Cloakroom-rails_33.7010_33.7310_33.7410.pdf | ||
| Product data sheet | ||
| Installation instructions | ||
| Cleaning and Care Instructions | ||
| Planning aid |
Documents
| Ausschreiben.de | Link | |
| Colour Chart | Link |
