Article number 162XPFGA.2K DC

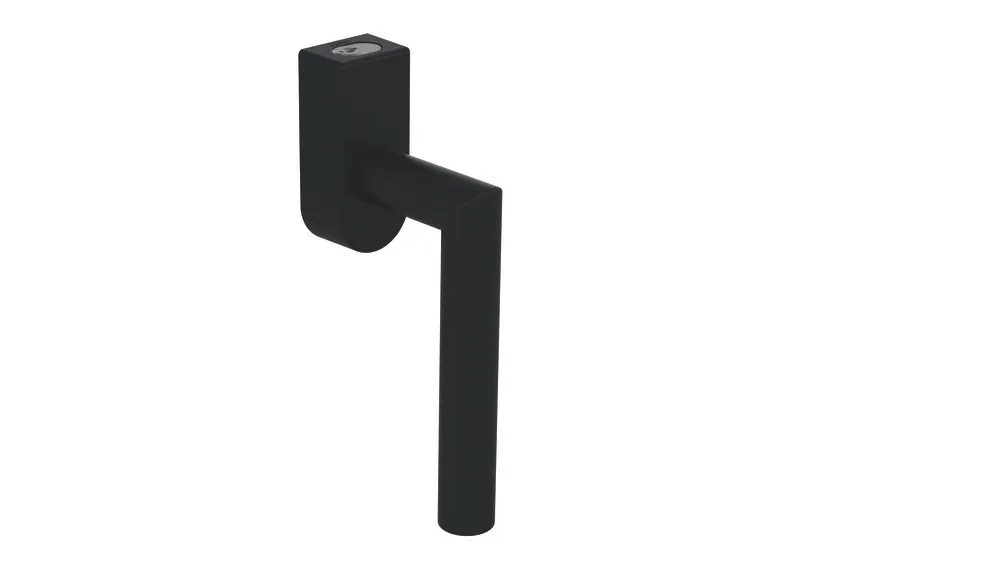

HEWI Window handle
Stainless steel, black deep matt powder coated, lockable, For windows with the tilt before turn function, Recommendation! Please indicate the exact pin length when ordering.
Show more Stainless steel, black deep matt powder coated, lockable, For windows with the tilt before turn function, Recommendation! Please indicate the exact pin length when ordering.
article group
Fittings for windows
Version
lockable, tilt before turn function
Colour
Material
Powder-coated
Window handle
lockable, For windows with the tilt before turn function, Model 162XP made of stainless steel round tube in mitre cut (1.4301), Matt jet black, powder-coated, Diameter 21.3 mm, 135 mm long, with 1.5 mm wall thickness, with 90 degree locking points and 7 mm square spindle, length protrudes by 30 mm (other lengths and 45 degree latching on request). preassembled on rose with metal base, 75.5 x 33 mm, with support spigot diameter 10 mm, concealed screw connection, Distance between fixing holes 43 mm, Stainless steel cover cap (1.4301), Wall thickness 1.5 mm. Integrated impression cylinder with 5 pin tumblers, Can be locked in all locking positions, but release of a 90 degree rotary movement, For opening the window when the window handle is locked, the lock acts directly on the handle and blocks the rotation.
closing differently:
Each locking cylinder requires a separate key, 2 keys are supplied per handle.
keyed alike:
all lock cylinders can be locked with the same key. Surface of window handle and rosette powder-coated deep matt black
lockable, For windows with the tilt before turn function, Model 162XP made of stainless steel round tube in mitre cut (1.4301), Matt jet black, powder-coated, Diameter 21.3 mm, 135 mm long, with 1.5 mm wall thickness, with 90 degree locking points and 7 mm square spindle, length protrudes by 30 mm (other lengths and 45 degree latching on request). preassembled on rose with metal base, 75.5 x 33 mm, with support spigot diameter 10 mm, concealed screw connection, Distance between fixing holes 43 mm, Stainless steel cover cap (1.4301), Wall thickness 1.5 mm. Integrated impression cylinder with 5 pin tumblers, Can be locked in all locking positions, but release of a 90 degree rotary movement, For opening the window when the window handle is locked, the lock acts directly on the handle and blocks the rotation.
closing differently:
Each locking cylinder requires a separate key, 2 keys are supplied per handle.
keyed alike:
all lock cylinders can be locked with the same key. Surface of window handle and rosette powder-coated deep matt black
