Article number 306XVESRC WR
HEWI security escutcheon

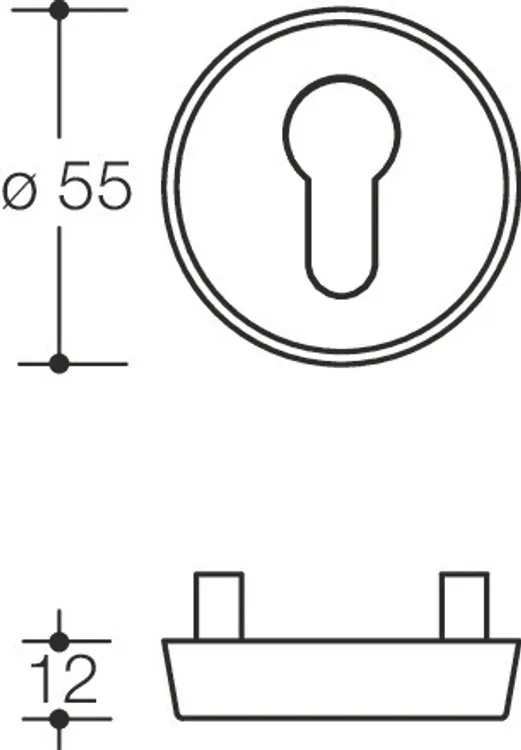

stainless steel, PVD coated, External rose 55 mm diameter, 12 mm high, Inner rosette 55 mm diameter, 10.5 mm high, protection class: ES 1 to DIN 18257.
Show more stainless steel, PVD coated, External rose 55 mm diameter, 12 mm high, Inner rosette 55 mm diameter, 10.5 mm high, protection class: ES 1 to DIN 18257.
article group
Hardware for interior doors
Colour
Material
PVD
RC security escutcheon made of stainless steel
external rose, solid, Diameter 55 mm, 12 mm high, in conical version, as protection against violent twisting off, Additional anti-drilling protection, in the form of a drill protection plate measuring 32 mm x 74 mm. The anti-drilling protection plate must be fixed to the lock case, by gluing it, to the profile cylinder before mounting the lock. Internal rose, FS type in polyamide-steel composite, Diameter 55 mm, 10.5 mm high, concealed screw connection, for mounting in pairs, Delivery with M 5 screws, holes for profiled cylinder (Euro (PZ) and KABA), for cylinder projections: 9 - 15 mm.
protection class: ES 1 to DIN 18257, can be used on burglar resistant elements to EN 1627-1630
PVD coated surface
external rose, solid, Diameter 55 mm, 12 mm high, in conical version, as protection against violent twisting off, Additional anti-drilling protection, in the form of a drill protection plate measuring 32 mm x 74 mm. The anti-drilling protection plate must be fixed to the lock case, by gluing it, to the profile cylinder before mounting the lock. Internal rose, FS type in polyamide-steel composite, Diameter 55 mm, 10.5 mm high, concealed screw connection, for mounting in pairs, Delivery with M 5 screws, holes for profiled cylinder (Euro (PZ) and KABA), for cylinder projections: 9 - 15 mm.
protection class: ES 1 to DIN 18257, can be used on burglar resistant elements to EN 1627-1630
PVD coated surface
Security escutcheon
Article number 306XVESRC WR
