Push/pull handle set

Attention:
· maximum nut pivot angle of 40°
· suitabale for use in inner- and protected outer areas

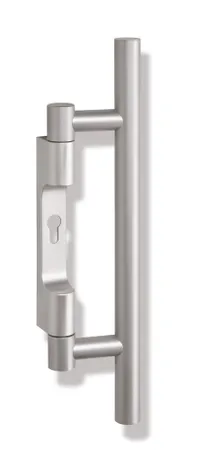

Stainless steel tube push/pull handle, Diameter 30 mm, straight handle with indented straight supports. Height 450 mm, Width 120 mm, Surface satin finished. Metal backplate base, Cover cap made of polyamide with surface optics (stainless steel satin finish). Bearing as maintenance-free plain bearing, Return mechanism for the pull handle. Quick assembly due to pre-mounted push handles on the base.
Mode of operation: Mounted in pairs, Function in opening direction - Push, Function in opposite direction - Pull, with continuous square spindle.
For emergency exits: Approval according to DIN EN 179 only in combination with tested lock systems. Information on the classification of the push/pull handle according to DIN EN 179 can be found in the certificates of the respective lock manufacturer.
Suitable as an operating element on doors according to DIN 18040, with accessible operating function in the operating range 850 mm top edge of finished floor. Flexible gripping height from 750 mm to 1200 mm above the top edge of the finished floor.
For fire doors in Germany: Installation into a smoke and fire door is only possible with a valid national usability certificate.
