version left
Article number 900.35.3S5XA 98

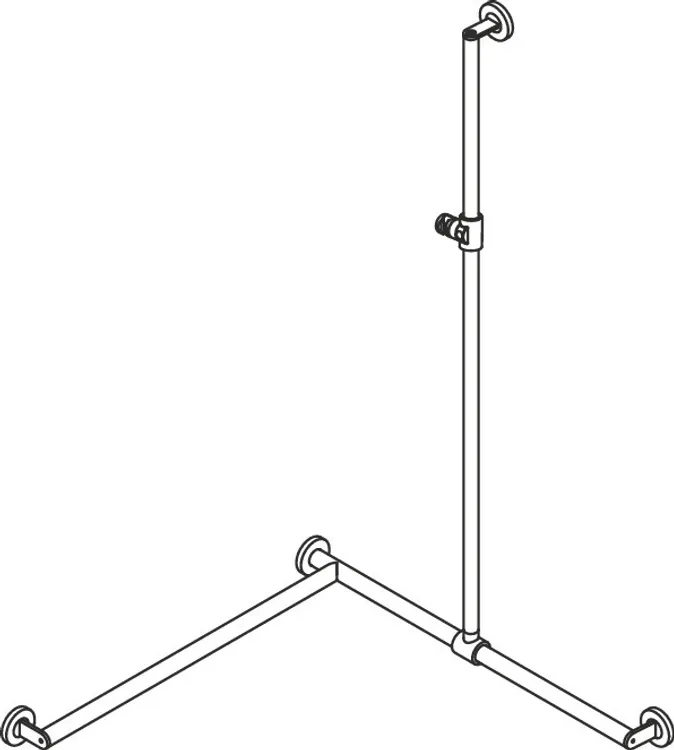

HEWI Shower handrail with sliding shower head rail, System 900
made of high-quality stainless steel, satin, vertical and horizontally arranged rails connected at right-angles, with mounting roses and shower head holder, suitable for shower heads of various manufacturers, with shower head rail that can be pushed to the side (for installation), left-hand version, vertical length made-to-measure from 23 5/8 inch (600 mm) to 49 3/16 inch (1250 mm), horizontal length made-to-measure from 18 11/16 inch (475 mm) to 70 7/8 inch (1800 mm), 2 3/4 inch (70 mm) deep, rail diameter 1 1/4 inch (32 mm), tube thickness 1/16 inch (2 mm), rose diameter 2 3/4 inch (70 mm), maximum loading capacity 330 lbs (150 kg), shower head holder made of high-quality matt polyamide in HEWI colours 98 (signal white) and 92 (anthracite grey), including HEWI fixing material. Meets requirements according to 2010 ADA standards and ICC / ANSI A117.1-2017.
Show more
made of high-quality stainless steel, satin, vertical and horizontally arranged rails connected at right-angles, with mounting roses and shower head holder, suitable for shower heads of various manufacturers, with shower head rail that can be pushed to the side (for installation), left-hand version, vertical length made-to-measure from 23 5/8 inch (600 mm) to 49 3/16 inch (1250 mm), horizontal length made-to-measure from 18 11/16 inch (475 mm) to 70 7/8 inch (1800 mm), 2 3/4 inch (70 mm) deep, rail diameter 1 1/4 inch (32 mm), tube thickness 1/16 inch (2 mm), rose diameter 2 3/4 inch (70 mm), maximum loading capacity 330 lbs (150 kg), shower head holder made of high-quality matt polyamide in HEWI colours 98 (signal white) and 92 (anthracite grey), including HEWI fixing material. Meets requirements according to 2010 ADA standards and ICC / ANSI A117.1-2017.
Diameter bar
32 mm
Version
left (user perspective)
Size
Längenvariabel
Colour
Material
Stainless steel
Shower handrail with sliding shower head rail, System 900
- vertical and horizontally arranged rails connected at right angles with mounting roses and shower head holder
- with shower head rail that can be pushed to the side (for installation)
- left-hand version

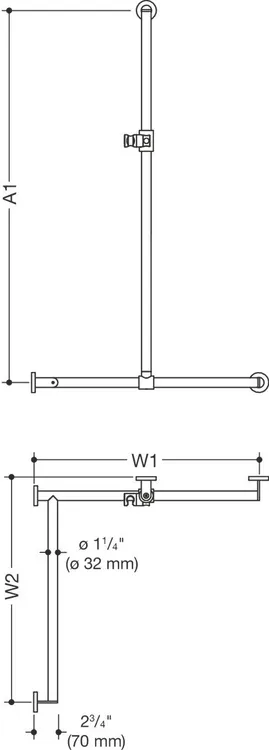

- vertical length made-to-measure from 23 5/8 inch (600 mm) to 49 3/16 inch (1250 mm), horizontal length made-to-measure from 18 11/16 inch (475 mm) to 70 7/8 inch (1800 mm), 2 3/4 inch (70 mm) deep
- rail diameter 1 1/4 inch (32 mm), tube thickness 1/16 inch (2 mm), rose diameter 2 3/4 inch (70 mm)
- maximum loading capacity 330 lbs (150 kg)
- made of high-quality stainless steel, satin
- shower head holder made of high-quality matt polyamide in HEWI colours 98 (signal white) and 92 (anthracite grey)
- suitable for shower heads of various manufacturers
- shower head holder can be tilted continuously and, after pressing a large pushbutton, its height can be adjusted
- conical adapter on shower head holder makes it easier to hook in the shower head
- reduced number of mounting roses due to innovative corner connection
- including non-corrosive and tested HEWI fixing material for wall mounting and sealing tape for sealing the drilling points
- meets requirements according to 2010 ADA standards and ICC / ANSI A117.1-2017
- vertical and horizontally arranged rails connected at right angles with mounting roses and shower head holder
- with shower head rail that can be pushed to the side (for installation)
- left-hand version
- vertical length made-to-measure from 23 5/8 inch (600 mm) to 49 3/16 inch (1250 mm), horizontal length made-to-measure from 18 11/16 inch (475 mm) to 70 7/8 inch (1800 mm), 2 3/4 inch (70 mm) deep
- rail diameter 1 1/4 inch (32 mm), tube thickness 1/16 inch (2 mm), rose diameter 2 3/4 inch (70 mm)
- maximum loading capacity 330 lbs (150 kg)
- made of high-quality stainless steel, satin
- shower head holder made of high-quality matt polyamide in HEWI colours 98 (signal white) and 92 (anthracite grey)
- suitable for shower heads of various manufacturers
- shower head holder can be tilted continuously and, after pressing a large pushbutton, its height can be adjusted
- conical adapter on shower head holder makes it easier to hook in the shower head
- reduced number of mounting roses due to innovative corner connection
- including non-corrosive and tested HEWI fixing material for wall mounting and sealing tape for sealing the drilling points
- meets requirements according to 2010 ADA standards and ICC / ANSI A117.1-2017
Design awards
Awarded by
Rail with sideways adjustable vertical support bar and shower head holder (ADA)
version left
Article number 900.35.3S5XA 98
