high risk product
Article number 801.35.993S 99

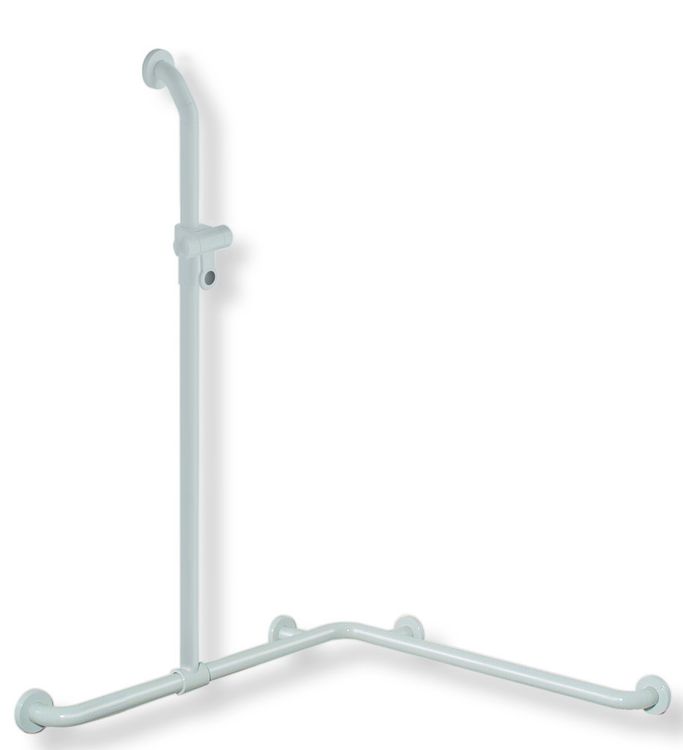

HEWI Rail with sideways adjustable vertical support bar with shower head holder, suicide-inhibiting design
horizontally and vertically arranged, at right-angled rails fitted with fixing roses, bent upward at a 45° angle, bottom fixing point is designed for installation below 850 mm height, with continuous, corrosion resistant steel core, vertical length made-to-measure from 600 mm to 1250 mm, horizontal lengths (corner mounting) made-to-measure from 475 mm to 1800 mm, 89 mm deep, rail diameter 33 mm, rose diameter 70 mm, made of high-quality polyamide according to HEWI colour chart, incl. corrosion-free HEWI fixing material.
Recommendation! When ordering please clarify dimensions and/or features and options.
Show more
horizontally and vertically arranged, at right-angled rails fitted with fixing roses, bent upward at a 45° angle, bottom fixing point is designed for installation below 850 mm height, with continuous, corrosion resistant steel core, vertical length made-to-measure from 600 mm to 1250 mm, horizontal lengths (corner mounting) made-to-measure from 475 mm to 1800 mm, 89 mm deep, rail diameter 33 mm, rose diameter 70 mm, made of high-quality polyamide according to HEWI colour chart, incl. corrosion-free HEWI fixing material.
Recommendation! When ordering please clarify dimensions and/or features and options.
Version
continuous steel core/ steel fixing roses
Size
Längenvariabel
Colour
Material
Polyamide
Please indicate center-to-center dimension A1, W1 and W2 when ordering. A1 is always mounted on W1.
Rail with sideways adjustable vertical support bar with shower head holder (suicide-inhibiting design)
- vertical and horizontal bars joined at right-angles with fixing roses, bent upward at 45° angle
- rail with shower head holder can be pushed to the side (for installation)
- the form of the upper curve makes it difficult to fix ropes or cords at the top
- bottom fixing point should be installed on a height of 850 mm maximum
- shower head holder can be tilted and adjusted in height continuously
- with continuous, corrosion resistant steel core
- incl. non-corrosive HEWI fixing materials
- can be mounted in left hand or right hand position
- if mounted on lightweight walls, rear lining made of laminated timber boards at least 20 mm thick is required
- vertical length made-to-measure from 600 mm to 1250 mm, horizontal lengths (corner mounting) made-to-measure from 475 mm to 1800 mm, 89 mm deep, rail diameter 33 mm, rose diameter 70 mm
- made of high-quality polyamide according to HEWI colour chart
- vertical and horizontal bars joined at right-angles with fixing roses, bent upward at 45° angle
- rail with shower head holder can be pushed to the side (for installation)
- the form of the upper curve makes it difficult to fix ropes or cords at the top
- bottom fixing point should be installed on a height of 850 mm maximum
- shower head holder can be tilted and adjusted in height continuously
- with continuous, corrosion resistant steel core
- incl. non-corrosive HEWI fixing materials
- can be mounted in left hand or right hand position
- if mounted on lightweight walls, rear lining made of laminated timber boards at least 20 mm thick is required
- vertical length made-to-measure from 600 mm to 1250 mm, horizontal lengths (corner mounting) made-to-measure from 475 mm to 1800 mm, 89 mm deep, rail diameter 33 mm, rose diameter 70 mm
- made of high-quality polyamide according to HEWI colour chart
Design awards
Awarded by
Documents
| Ausschreiben.de | Link | |
| Colour Chart | Link |
Rail with vertical support bar and shower head holder, special length
