Article number 306XANRHT
HEWI WC rose

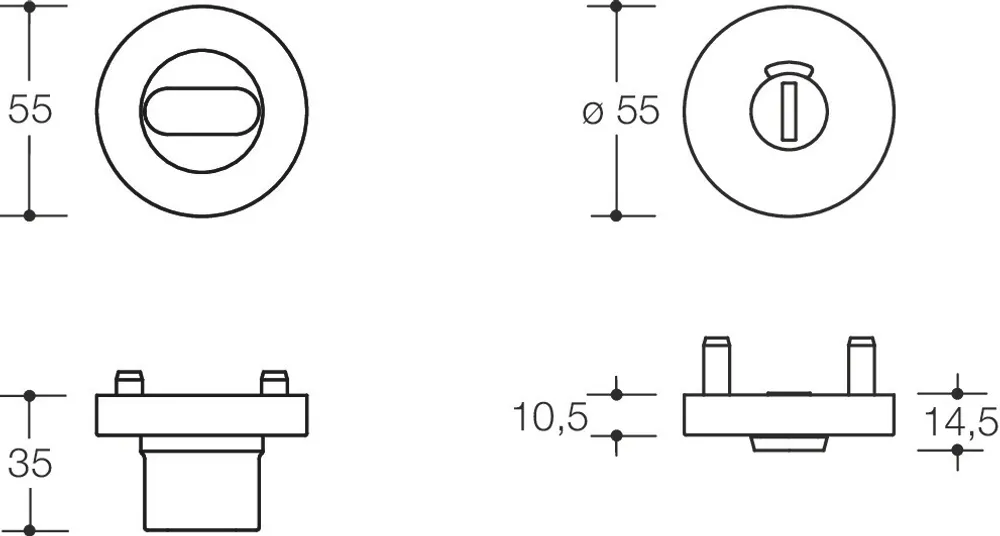

Stainless steel, satin finish, 55 mm diameter, 10.5 mm high.
Show more
Stainless steel, satin finish, 55 mm diameter, 10.5 mm high.
EAN
4014885676706
article number EAN
306XANRHT
Emergency opening type
FBM Free Occupied with Coin
Square latch
8 mm
Technology
H-technology | Class 4
Door thickness
38,1 - 43,0 mm
Floor to wall stationary support
Round rose
Material
Stainless steel
Fitting type
Vacant/engaged fittings
Stainless steel WC rose, 270 range
Rose substructure made of synthetic material, can be used for left and right-hand opening doors. WC version with emergency opening by means of square spindle or coin and occupancy disc (red/white indicator) on the outside (long stems), turn knob on the inside (short cams).
Rose cap round, made of stainless steel (1.4301), diameter 55 mm, 10.5 mm high, 1.5 mm wall thickness.
Matt satin surface
Supplied incl. screws
Rose substructure made of synthetic material, can be used for left and right-hand opening doors. WC version with emergency opening by means of square spindle or coin and occupancy disc (red/white indicator) on the outside (long stems), turn knob on the inside (short cams).
Rose cap round, made of stainless steel (1.4301), diameter 55 mm, 10.5 mm high, 1.5 mm wall thickness.
Matt satin surface
Supplied incl. screws
Downloads
| Product data sheet |
Documents
| Ausschreiben.de | Link | |
| Colour Chart | Link |

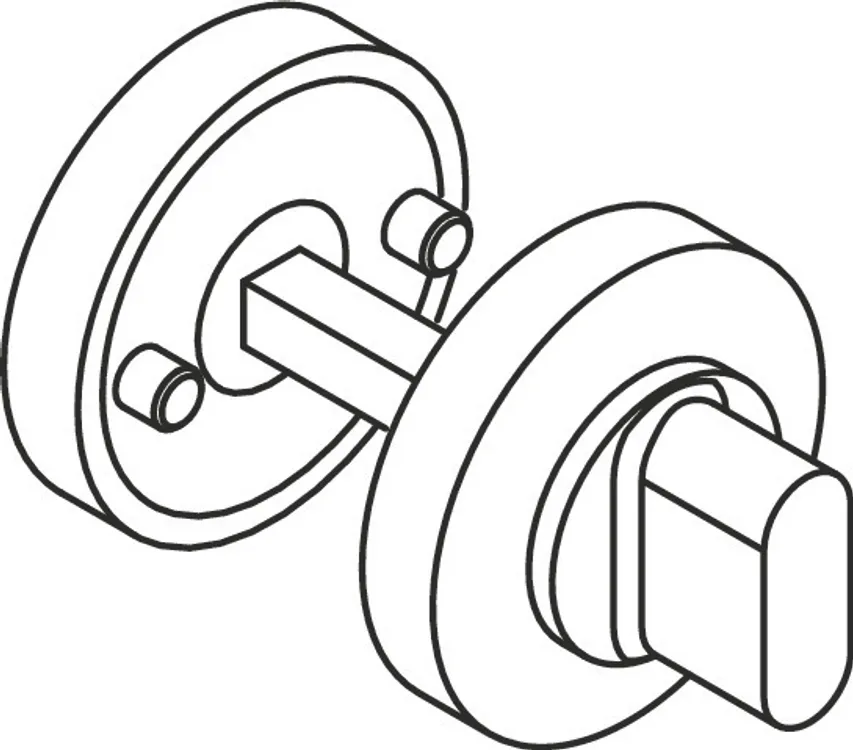

Rose with turn knob
