Article number 306XANRHTKN
HEWI WC rose
Stainless steel, satin finish, 55 mm diameter, 10.5 mm high.
Show more
Stainless steel, satin finish, 55 mm diameter, 10.5 mm high.
EAN
4014885676713
article number EAN
306XANRHTKN
Square latch
8 mm
Technology
H-technology | Class 4
Door thickness
38,1 - 43,0 mm
Floor to wall stationary support
Round rose
Material
Stainless steel
Fitting type
Vacant/engaged fittings
Stainless steel WC rose, 270 range
Rose substructure made of synthetic material, can be used for left and right-hand opening doors. WC version with emergency opening by means of square spindle or coin and occupancy disc (red/white indicator) on the outside (long stems), turn knob on the inside (short cams).
Rose cap round, made of stainless steel (1.4301), diameter 55 mm, 10.5 mm high, 1.5 mm wall thickness.
Matt satin surface
KN version - short cams, supplied without screws
Rose substructure made of synthetic material, can be used for left and right-hand opening doors. WC version with emergency opening by means of square spindle or coin and occupancy disc (red/white indicator) on the outside (long stems), turn knob on the inside (short cams).
Rose cap round, made of stainless steel (1.4301), diameter 55 mm, 10.5 mm high, 1.5 mm wall thickness.
Matt satin surface
KN version - short cams, supplied without screws
Downloads
| Product data sheet |
Documents
| Ausschreiben.de | Link | |
| Colour Chart | Link |

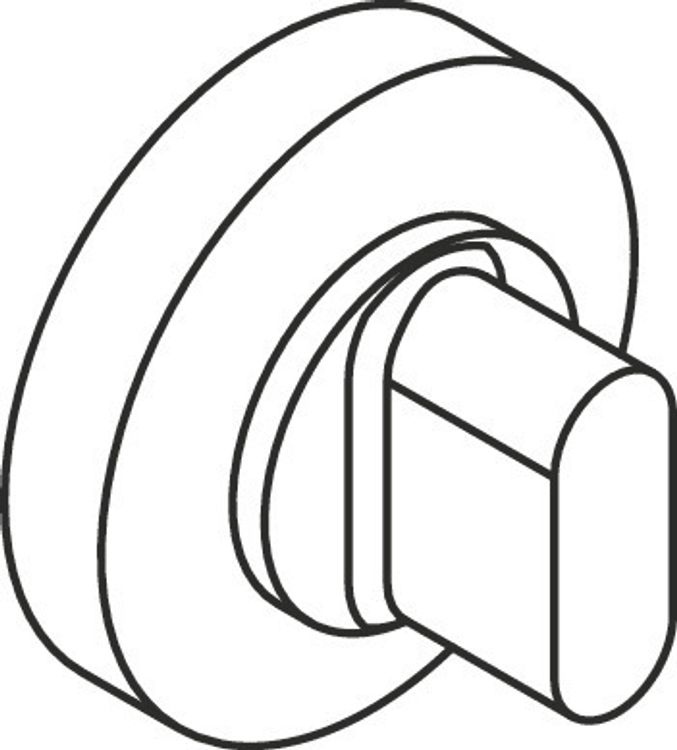

Rose with turn knob
Article number 306XANRHTKN
