Article number 306.23PBES 99

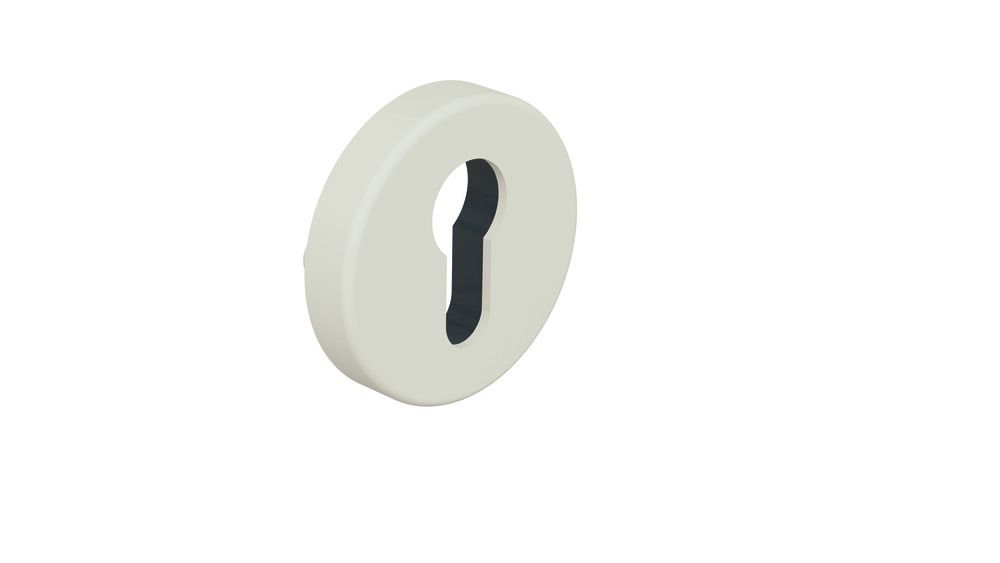

HEWI security escutcheon
in polyamide matt-steel composite, external rose 55 mm diameter, 10.5 mm high, Internal rose FS type, diameter 55 mm, 10.5 mm high, for cylinder projections: 7 x 12 mm, Supplied with screws M 5.
Show more in polyamide matt-steel composite, external rose 55 mm diameter, 10.5 mm high, Internal rose FS type, diameter 55 mm, 10.5 mm high, for cylinder projections: 7 x 12 mm, Supplied with screws M 5.
EAN
4014885631231
article group
Components | Spare parts
Sustainability
EPD
Colour
article number EAN
306.23PBES 99
Perforation
PZ - profile cylinder
Door thickness
38,1 - 43,0 mm
Material
Polyamide, mat
Security rose in polyamide matt steel composite design
external rose, diameter 55 mm, 10.5 mm, high, lower part, conical design, as protection against violent twisting
Interior rose FS version, diameter 55 mm, 10.5 mm high,
concealed, for paired mounting, delivery with screws M 5,
holes for profile cylinder (PZ and KABA), for cylinder projections: 7 - 12 mm
The security rose corresponds to the specifications of DIN 18273.
external rose, diameter 55 mm, 10.5 mm, high, lower part, conical design, as protection against violent twisting
Interior rose FS version, diameter 55 mm, 10.5 mm high,
concealed, for paired mounting, delivery with screws M 5,
holes for profile cylinder (PZ and KABA), for cylinder projections: 7 - 12 mm
The security rose corresponds to the specifications of DIN 18273.
