Article number 306.23PBESRC 90

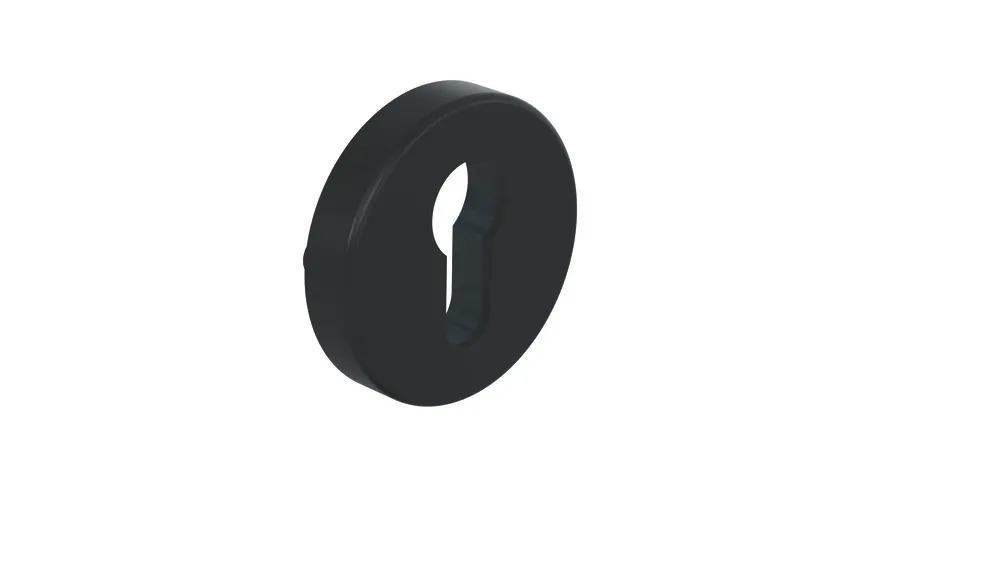

HEWI RC-security escutcheon
in polyamide matt steel composite construction,
external rose 55 mm diameter, 10.5 mm high
base, in conical version, as protection against forced twisting off
additional anti-drill protection plate with dimensions 32 mm x 74 mm,
Internal rose FS type, diameter 55 mm, 10.5 mm high
for cylinder projections: 7 x 12 mm
The security escutcheon conforms to the requirements of DIN 18273
protection class: ES 1 to DIN 18257, can be used on burglar resistant elements to EN 1627-1630
Show more in polyamide matt steel composite construction,
external rose 55 mm diameter, 10.5 mm high
base, in conical version, as protection against forced twisting off
additional anti-drill protection plate with dimensions 32 mm x 74 mm,
Internal rose FS type, diameter 55 mm, 10.5 mm high
for cylinder projections: 7 x 12 mm
The security escutcheon conforms to the requirements of DIN 18273
protection class: ES 1 to DIN 18257, can be used on burglar resistant elements to EN 1627-1630
EAN
4014885631668
article group
Components | Spare parts
Sustainability
EPD
Colour
article number EAN
306.23PBESRC 90
Perforation
PZ - profile cylinder
Door thickness
38,1 - 43,0 mm
Material
Polyamide, mat
RC security rose made of polyamide matt steel composite, external rose diameter 55 mm, 10.5 mm high, base part, conically shaped as protection against forced twisting off, additional anti-drill protection implemented as an anti-drill protection plate with dimensions 32 mm x 74 mm. The anti-drill protection plate must be fixed, by bonding onto the lockcase with adhesive, in the area of the profile cylinder before mounting the lock. Internal rose FS version, diameter 55 mm, 10.5 mm high,
concealed screw fixing, for paired mounting, supplied with screws M 5, holes for profile cylinder (PZ and KABA), for cylinder projection: 7 - 12 mm. The security rose conforms to the requirements of DIN 18273.
Protection class: ES 1 to DIN 18257, can be used on burglar resistant elements to EN 1627-1630
concealed screw fixing, for paired mounting, supplied with screws M 5, holes for profile cylinder (PZ and KABA), for cylinder projection: 7 - 12 mm. The security rose conforms to the requirements of DIN 18273.
Protection class: ES 1 to DIN 18257, can be used on burglar resistant elements to EN 1627-1630
