Article number 306.23XAES

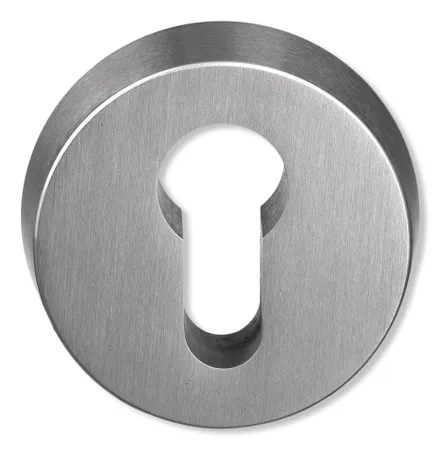

HEWI security escutcheon
made of stainless steel satin surface finish, external rose, solid, diameter 55 mm, 12 mm high, Internal rose, FS type in polyamide-steel composite, diameter 55 mm, 10.5 mm high, holes for profiled cylinder (Euro (PZ) and KABA), Cylinder projections: 9 - 15 mm, the HEWI security escutcheon conforms to the requirements of DIN 18273.
Show more
made of stainless steel satin surface finish, external rose, solid, diameter 55 mm, 12 mm high, Internal rose, FS type in polyamide-steel composite, diameter 55 mm, 10.5 mm high, holes for profiled cylinder (Euro (PZ) and KABA), Cylinder projections: 9 - 15 mm, the HEWI security escutcheon conforms to the requirements of DIN 18273.
EAN
4014884809334
article number EAN
306.23XAES
Perforation
PZ - profile cylinder
Door thickness
63,1 - 68,0 mm
Material
Stainless steel
Security escutcheon made of stainless steel
External rose, solid, 55 mm diameter, 12 mm high,
hardened, conical shape, as protection against forced twisting off
Internal rose, FS type in polyamide-steel composite, 55 mm diameter, 10.5 mm high,
concealed screw fixing, for installation in pairs, supplied with screws M 5,
Holes for profiled cylinder (Euro cylinder and KABA), for cylinder projections: 9 - 15 mm
The security escutcheon conforms to the requirements of DIN 18273
Surface satin finished
External rose, solid, 55 mm diameter, 12 mm high,
hardened, conical shape, as protection against forced twisting off
Internal rose, FS type in polyamide-steel composite, 55 mm diameter, 10.5 mm high,
concealed screw fixing, for installation in pairs, supplied with screws M 5,
Holes for profiled cylinder (Euro cylinder and KABA), for cylinder projections: 9 - 15 mm
The security escutcheon conforms to the requirements of DIN 18273
Surface satin finished
Security escutcheon
Article number 306.23XAES
