Article number 306XPESZRC DC
HEWI Security escutcheon with cylinder cover

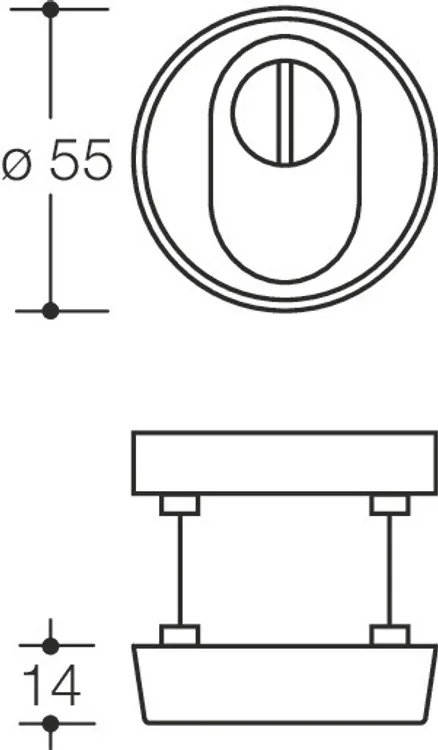

stainless steel, black deep matt powder coated, external rose 55 mm diameter, 14 mm high, inner rose 55 mm diameter, 10.5 mm high, protection class: ES 1 to DIN 18257.
Show more stainless steel, black deep matt powder coated, external rose 55 mm diameter, 14 mm high, inner rose 55 mm diameter, 10.5 mm high, protection class: ES 1 to DIN 18257.
article group
Components | Spare parts
Colour
Material
Powder-coated
RC security escutcheon made of stainless steel with cylinder cover
external rose, solid, Diameter 55 mm, 14 mm high, with integrated cylinder cover with supporting surround,, in conical version, as protection against forced twisting off, Additional anti-drilling protection, in the form of a drill protection plate measuring 32 mm x 74 mm. The anti-drilling protection plate must be fixed to the lock case, by gluing it, to the profile cylinder before mounting the lock. Internal rose FS type, diameter 55 mm, 10.5 mm high, concealed screw connection, for mounting in pairs, Delivery with M 5 screws, holes for profiled cylinder (Euro (PZ) and KABA), for cylinder projections: 10.5 - 15 mm.
protection class: ES 1 to DIN 18257, can be used on burglar resistant elements to EN 1627-1630
Surface matt jet black powder-coated
external rose, solid, Diameter 55 mm, 14 mm high, with integrated cylinder cover with supporting surround,, in conical version, as protection against forced twisting off, Additional anti-drilling protection, in the form of a drill protection plate measuring 32 mm x 74 mm. The anti-drilling protection plate must be fixed to the lock case, by gluing it, to the profile cylinder before mounting the lock. Internal rose FS type, diameter 55 mm, 10.5 mm high, concealed screw connection, for mounting in pairs, Delivery with M 5 screws, holes for profiled cylinder (Euro (PZ) and KABA), for cylinder projections: 10.5 - 15 mm.
protection class: ES 1 to DIN 18257, can be used on burglar resistant elements to EN 1627-1630
Surface matt jet black powder-coated
Security escutcheon with cylinder cover
Article number 306XPESZRC DC
