A1: min. 220 mm, max. 1683 mm
A2: min. 220 mm, max. 1683 mm
with aluminum core
Article number 801.34.1S 33

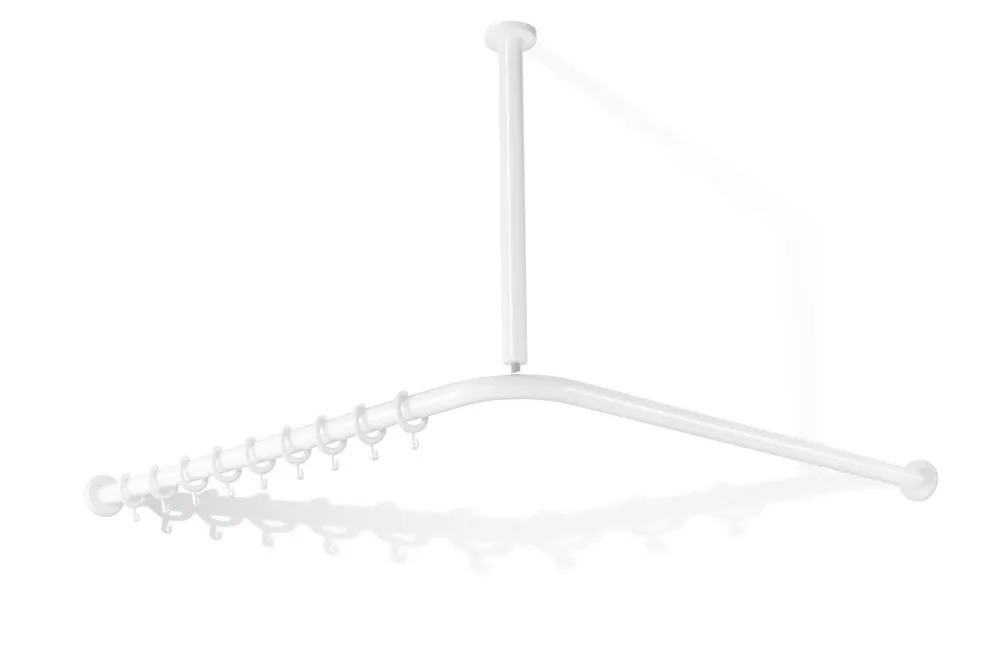

horizontal rails joined to form a right angle, with metal core, vertical length made-to-measure from 220 mm to 1983 mm, length at rose ends can be shortened, with a corresponding number of curtain rings made of polyamide, rail diameter 33 mm, rose diameter 70 mm, made of high-quality polyamide according to HEWI colour chart, ceiling support required, including non-corrosive fixing material.
Recommendation! When ordering please clarify dimensions and/or features and options
- horizontal rails joined to form a right angle and fitted with curtain rings
- for installing a shower curtain
- with metal core
- fixing with roses to wall and ceiling, ceiling support required
- with a corresponding number of curtain rings
- made-to-measure length from 220 mm to 1983 mm, rail diameter 33 mm, rose diameter 70 mm
- with preparation for ceiling suspension in the arch
- made of high-quality polyamide according to HEWI colour chart
Design awards
Awarded by
Downloads
| 3DF | DXF | |
| Fixing types | ||
| Product data sheet | ||
| Installation instructions | ||
| Cleaning and Care Instructions |
Documents
| Ausschreiben.de | Link | |
| Colour Chart | Link |
