Article number 950.36.1S91 92
HEWI System 800 K Support rail
straight rail with supports straight to the wall and roses, support rail made of high-quality polyamide according to HEWI colour chart, supports and roses made of high-quality polyamide in HEWI colour 98 (signal white), with continuous, corrosion resistant steel core, outside Dimension made-to-measure from centre-to-centre 220 mm to 1100 mm, rail diameter 33 mm, 90 mm deep, including non-corrosive HEWI fixing material.
Recommendation! When ordering please clarify dimensions and/or features and options
Show more
straight rail with supports straight to the wall and roses, support rail made of high-quality polyamide according to HEWI colour chart, supports and roses made of high-quality polyamide in HEWI colour 98 (signal white), with continuous, corrosion resistant steel core, outside Dimension made-to-measure from centre-to-centre 220 mm to 1100 mm, rail diameter 33 mm, 90 mm deep, including non-corrosive HEWI fixing material.
Recommendation! When ordering please clarify dimensions and/or features and options
Version
continuous steel core/ steel fixing roses
Size
Längenvariabel
Colour
Material
Polyamide

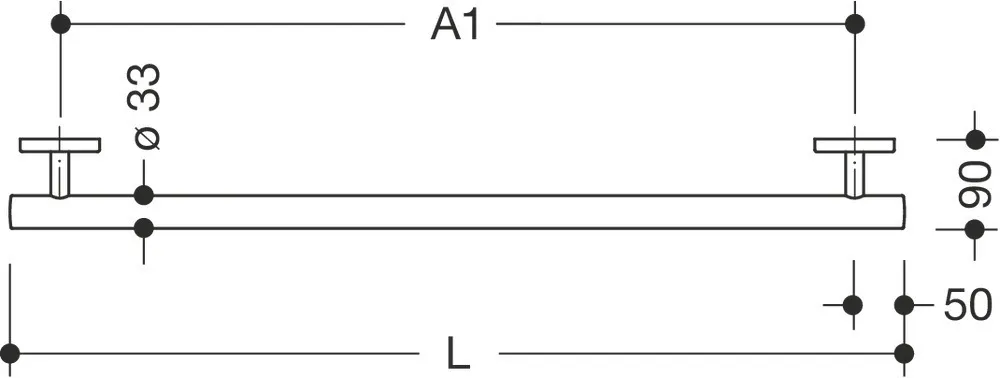

When ordering please specify centre-to-centre dimension L and colour.
System 800 K Support rail
- straight rail with supports straight to the wall and roses
- for holding on to and providing support
- support rail made of high-quality polyamide according to HEWI colour chart
- supports and roses made of high-quality polyamide in HEWI colour 98 (signal white)
- with continuous, corrosion resistant steel core
- centre-to-centre made-to-measure from 220 to 1100 mm, rail diameter 33 mm, 90 mm deep
- wall connection with discreet supports (diameter 18 mm) perpendicular to wall and flat roses
- rose diameter 80 mm, cap height 13 mm
- easy installation due to individually mountable fixing plates made of high-quality stainless steel for hanging the support rail
- including non-corrosive HEWI fixing material
- Please note when using with hanging seats: Compatibility check required.
- A detailed list of possible combinations of hand rails, L-shaped rails and shower handrails with matching hanging seats can be found in our online catalogue in the download area of the respective product.
- straight rail with supports straight to the wall and roses
- for holding on to and providing support
- support rail made of high-quality polyamide according to HEWI colour chart
- supports and roses made of high-quality polyamide in HEWI colour 98 (signal white)
- with continuous, corrosion resistant steel core
- centre-to-centre made-to-measure from 220 to 1100 mm, rail diameter 33 mm, 90 mm deep
- wall connection with discreet supports (diameter 18 mm) perpendicular to wall and flat roses
- rose diameter 80 mm, cap height 13 mm
- easy installation due to individually mountable fixing plates made of high-quality stainless steel for hanging the support rail
- including non-corrosive HEWI fixing material
- Please note when using with hanging seats: Compatibility check required.
- A detailed list of possible combinations of hand rails, L-shaped rails and shower handrails with matching hanging seats can be found in our online catalogue in the download area of the respective product.
