{Article number 162XAH02.230}
HEWI Vacant/engaged fitting

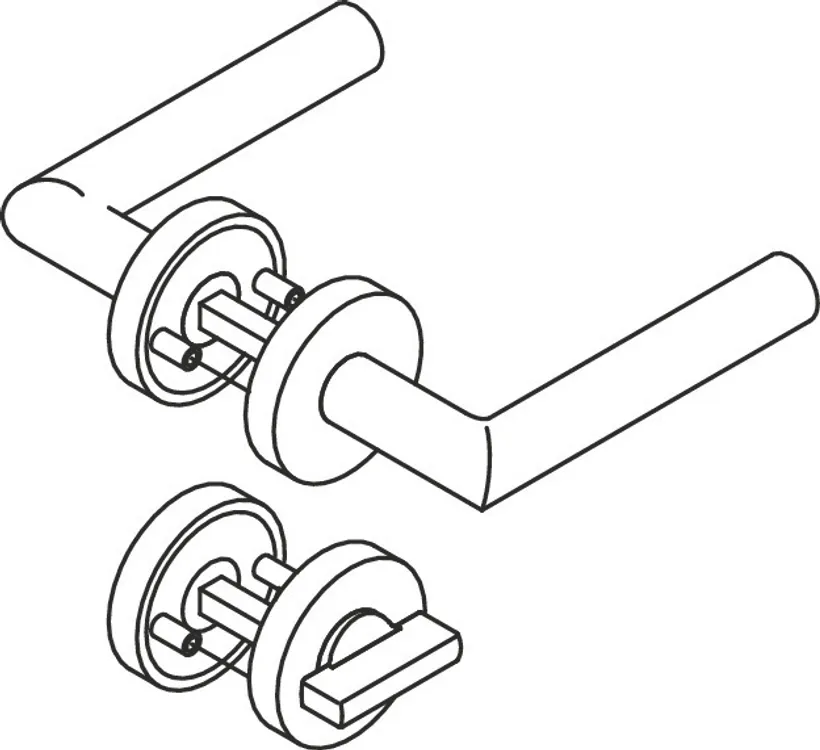

in H-technology according to DIN 18255 and EN 1906 made of stainless steel, Surface satin finished, consisting of: lever handle 162XAH, diameter 21.3 mm, roses 305.21XAH and 306.23XANR, WC version with emergency opening by means of square spindle or coin and occupancy disc (red/white indicator) on the outside, with integrated spring-assisted restraining "hold-up" module.
user category: Class 4
Recommendation! When ordering please clarify dimensions and/or features and options
Show more
in H-technology according to DIN 18255 and EN 1906 made of stainless steel, Surface satin finished, consisting of: lever handle 162XAH, diameter 21.3 mm, roses 305.21XAH and 306.23XANR, WC version with emergency opening by means of square spindle or coin and occupancy disc (red/white indicator) on the outside, with integrated spring-assisted restraining "hold-up" module.
user category: Class 4
Recommendation! When ordering please clarify dimensions and/or features and options
holding-up spring
YES - with spring
DIN Direction
Left/Right
EAN
4014885117568
Nachhaltigkeit
EPD
article number EAN
162XAH02.230
Square
8 mm
Emergency opening type
FBM Free Occupied with Coin
Square latch
8 mm
Technology
H-technology | Class 4
Door thickness
38,1 - 43,0 mm
Floor to wall stationary support
Round rose
Material
Stainless steel
Fitting type
Vacant/engaged fittings
Vacant/Engaged fitting
in H-technology with roses according to DIN 18255 and EN 1906 made of stainless steel, consisting of:
Lever handle 162X... made of stainless steel tube in mitre cut (1.4301), diameter 21.3 mm with 1.5 mm wall thickness, with stepped shoulder guide and groove, with set screw M5 as additional fixing of lever and spindle for optimal transfer of force to door leaf.
Installed by simply latching the lever handle into the base parts preassembled on the door. The latching can be released using the dismantling tool.
Roses: model 305.21X... and 306.23X..., 305.21X... composite synthetic material and steel rose substructure with black zinc/nickel surface for optimum corrosion protection, integrated spring-assisted restraining "hold-up" module, can be used for left or right-hand opening doors, supporting the lock for longer durability. Fixed rotating bearing of the lever handle with automatically latching all-round locking and 5 mm journal as maintenance-free plain bearing with elastic compensating area, to cancel the possible mounting inaccuracies. Concealed, non-loosening screwed joint with M5 stainless steel screw and sleeve combination as well as the pivot disappearing into the leaf. WC version with emergency opening by means of square spindle or coin and occupancy disc (red/white indicator) on the outside.
Rose cap round, made of stainless steel (1.4301), diameter 55 mm, 10.5 mm high, 1.5 mm wall thickness.
Surface satin finished
Designed and tested for the projects segment, user category to EN 1906 - Class 4 fitting with spindle 8 - 8.5 mm
user category: Class 4
Durability: Class 7
Door weight: No classification specified
Fire resistance: Class 0
Safety: Class 1
Corrosion resistance: Class 4
Burglary protection: Class 0
Design-type: A
Sustainability: EPD Environmental Product Declaration
in H-technology with roses according to DIN 18255 and EN 1906 made of stainless steel, consisting of:
Lever handle 162X... made of stainless steel tube in mitre cut (1.4301), diameter 21.3 mm with 1.5 mm wall thickness, with stepped shoulder guide and groove, with set screw M5 as additional fixing of lever and spindle for optimal transfer of force to door leaf.
Installed by simply latching the lever handle into the base parts preassembled on the door. The latching can be released using the dismantling tool.
Roses: model 305.21X... and 306.23X..., 305.21X... composite synthetic material and steel rose substructure with black zinc/nickel surface for optimum corrosion protection, integrated spring-assisted restraining "hold-up" module, can be used for left or right-hand opening doors, supporting the lock for longer durability. Fixed rotating bearing of the lever handle with automatically latching all-round locking and 5 mm journal as maintenance-free plain bearing with elastic compensating area, to cancel the possible mounting inaccuracies. Concealed, non-loosening screwed joint with M5 stainless steel screw and sleeve combination as well as the pivot disappearing into the leaf. WC version with emergency opening by means of square spindle or coin and occupancy disc (red/white indicator) on the outside.
Rose cap round, made of stainless steel (1.4301), diameter 55 mm, 10.5 mm high, 1.5 mm wall thickness.
Surface satin finished
Designed and tested for the projects segment, user category to EN 1906 - Class 4 fitting with spindle 8 - 8.5 mm
user category: Class 4
Durability: Class 7
Door weight: No classification specified
Fire resistance: Class 0
Safety: Class 1
Corrosion resistance: Class 4
Burglary protection: Class 0
Design-type: A
Sustainability: EPD Environmental Product Declaration
