Article number 111FG.1 33

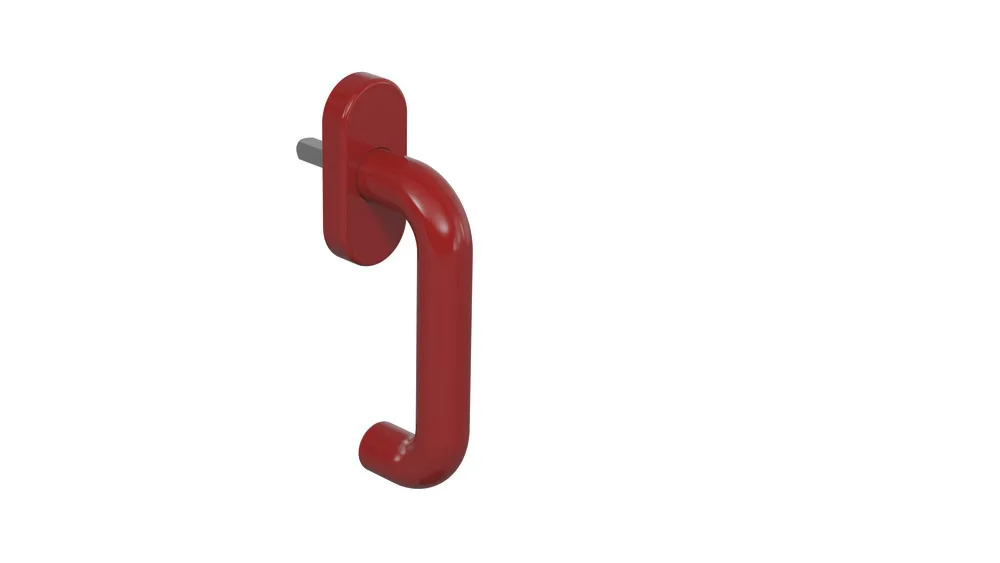

HEWI Window handle
Design 111 made of polyamide, diameter 20 mm, 130 mm length and spindle 7 mm, the window handle meets the standards of DIN 18040, rose 72 x 32 mm, with pivot, supplied without screws.
Please indicate the exact pin length when ordering.
Show more Design 111 made of polyamide, diameter 20 mm, 130 mm length and spindle 7 mm, the window handle meets the standards of DIN 18040, rose 72 x 32 mm, with pivot, supplied without screws.
Please indicate the exact pin length when ordering.
Function
90° detent
EAN
4014885619741
article group
Fittings for windows
Sustainability
EPD
Version
not lockable
Colour
article number EAN
111FG.1 33
Protruding pin length
40 mm
Material
Polyamide
Available with 180° stop or 45° stop for night ventilation on request.
Window handle
Design 111 made of polyamide, 20 mm diameter, 130 mm long, with 90 degree latching points and 7 mm square spindle, length protrudes by 30 mm (other lengths and 45 degree latching on request). The window handle meets the standards of DIN 18040.
Preassembled on a oval rose 72 x 32 mm, with pivot diameter 10 mm, concealed screw fixing, screw hole spacing 43 mm, cover cap made of stainless steel (1.4301), wall thickness 1.5 mm. Supplied without fixing screws.
Sustainability: EPD Environmental Product Declaration
Design 111 made of polyamide, 20 mm diameter, 130 mm long, with 90 degree latching points and 7 mm square spindle, length protrudes by 30 mm (other lengths and 45 degree latching on request). The window handle meets the standards of DIN 18040.
Preassembled on a oval rose 72 x 32 mm, with pivot diameter 10 mm, concealed screw fixing, screw hole spacing 43 mm, cover cap made of stainless steel (1.4301), wall thickness 1.5 mm. Supplied without fixing screws.
Sustainability: EPD Environmental Product Declaration
