short stems
Article number 230.21RNRKN 99

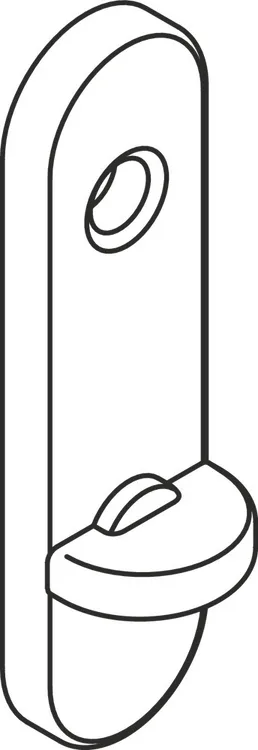

HEWI WC short plate
short stems, in R-technology made of polyamide, high-polished surface, for handle diameter 21.3 mm, backplate substructure made of synthetic material-stainless steel composite , WC version with bolt, backplate cover 46 x 168 mm, 11 mm high, 1.5 mm wall thickness, Supplied without screws.
Show more short stems, in R-technology made of polyamide, high-polished surface, for handle diameter 21.3 mm, backplate substructure made of synthetic material-stainless steel composite , WC version with bolt, backplate cover 46 x 168 mm, 11 mm high, 1.5 mm wall thickness, Supplied without screws.
EAN
4014885626947
article group
Components | Spare parts
Fitting type
Vacant/engaged fittings
Colour
article number EAN
230.21RNRKN 99
Square latch
8 mm
Distance
78 mm
Door thickness
38,1 - 43,0 mm
Technology
R-technology | Class 4
Floor to wall stationary support
Backplate, short
Short WC door backplate
Short cams in R-technology made of polyamide, solid colour, high gloss surface, for lever handle neck diameter 21.3 mm
Composite synthetic material and stainless steel backplate substructure, can be used for left or right-hand opening doors. Concealed, non-loosening screwed joint with M4 screw and sleeve combination as well as lug disappearing into the door leaf. WC version with emergency opening by means of square spindle or coin and occupancy disc (red/white indicator) on the outside (long cams). Turn knob on the inside (short cams).

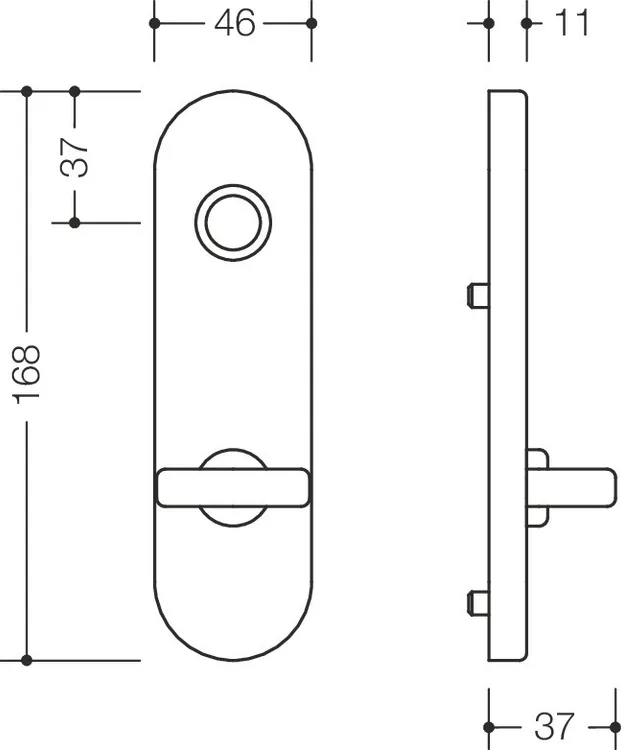

Backplate cover cap 46 x 168 mm, 11 mm high, flat, 1.5 mm wall thickness.
Supplied incl. screws
Short cams in R-technology made of polyamide, solid colour, high gloss surface, for lever handle neck diameter 21.3 mm
Composite synthetic material and stainless steel backplate substructure, can be used for left or right-hand opening doors. Concealed, non-loosening screwed joint with M4 screw and sleeve combination as well as lug disappearing into the door leaf. WC version with emergency opening by means of square spindle or coin and occupancy disc (red/white indicator) on the outside (long cams). Turn knob on the inside (short cams).
Backplate cover cap 46 x 168 mm, 11 mm high, flat, 1.5 mm wall thickness.
Supplied incl. screws
