Article number 480.36.00160 SC

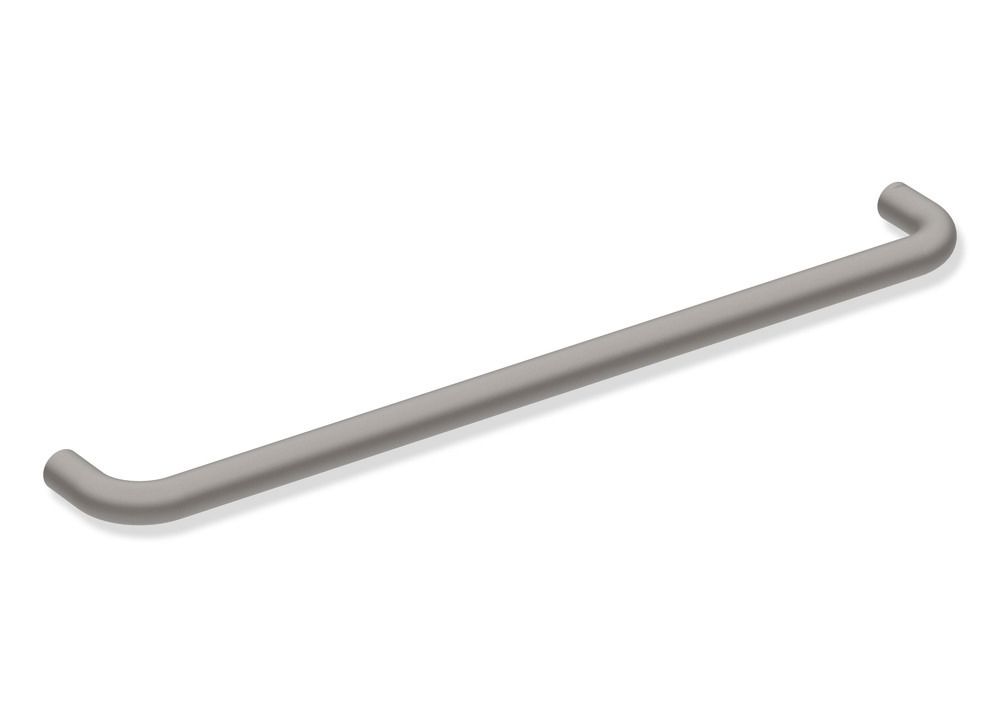

HEWI grab rail
Stainless steel, Powder-coated, Centre distance 600 mm, 79 mm deep, Diameter 25 mm, tested up to 150 kg when used with HEWI fixing material, recommended maximum weight of the user: 100 kg.
Show more Stainless steel, Powder-coated, Centre distance 600 mm, 79 mm deep, Diameter 25 mm, tested up to 150 kg when used with HEWI fixing material, recommended maximum weight of the user: 100 kg.
Current color: SC (matt dark grey pearl mica)
EAN
4014885735915
article group
Support rail
Diameter bar
25 mm
Size
600 mm
Colour
Assembly
wall mounting
Material
Powder-coated
Grab rail Series 480
- Cylindrical rod with curved wall connection without fixing rosettes
- Used for holding and supporting
- Not suitable for use with suspended seats

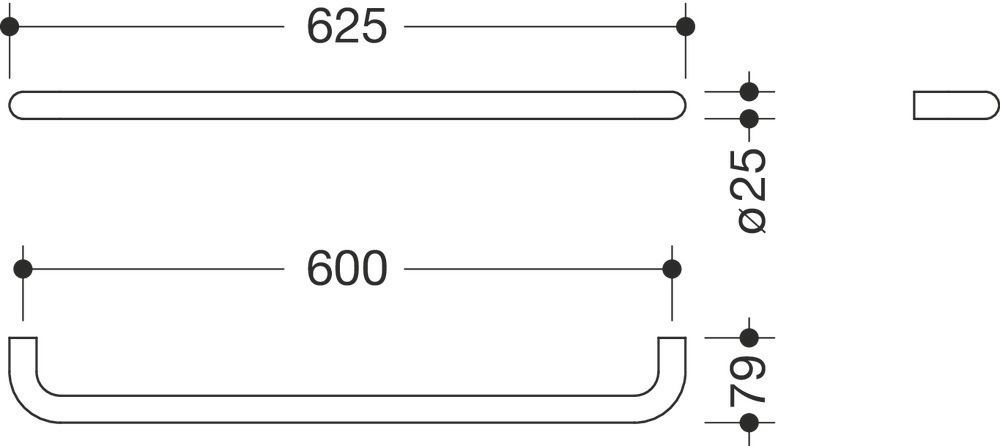

- Centre distance 600 mm, 79 mm deep
- Rod diameter 25 mm, Tube thickness 2 mm
- Made from high-quality stainless steel, powder-coated in the HEWI colours DX (deep matt white), DC (matt black) and SC (matt dark grey pearl mica)
- Including non-corrosive and tested HEWI fixing material for wall mounting and sealing tape to seal the drilling points
- tested up to 150 kg when used with HEWI fixing material
- recommended maximum weight of the user: 100 kg
- Cylindrical rod with curved wall connection without fixing rosettes
- Used for holding and supporting
- Not suitable for use with suspended seats
- Centre distance 600 mm, 79 mm deep
- Rod diameter 25 mm, Tube thickness 2 mm
- Made from high-quality stainless steel, powder-coated in the HEWI colours DX (deep matt white), DC (matt black) and SC (matt dark grey pearl mica)
- Including non-corrosive and tested HEWI fixing material for wall mounting and sealing tape to seal the drilling points
- tested up to 150 kg when used with HEWI fixing material
- recommended maximum weight of the user: 100 kg
